COLOUR & FINISH OF PARTS GPW - MB - GP

And some technical information

Last Update :- 4th March 2017

Due to "Technical Difficulties" some images are MIA. Working on rectifying this at the moment,

If you find an image belonging to you and I have not asked for permission, please contact me to rectify the situation.

Latest Updates will be marked in RED then changed to GREEN on the any subsequent update

 Ford GPW  Willys MB      Ford GP

http://jeepdraw.com/images/jeepdraw/default/underconstruction.gif

: Notice :
This part of the website is incomplete. It is not finished. Un-done ...
I know that the site is incomplete. I am the one who uncompleted it.
I would rather, however, allow you to view the work-in-progress, and perhaps provide some input as to how it develops, rather than restrict your access until I consider it done ...
So check out what's here, and if you feel so inclined, take a moment to share your opinions and advice with everyone or just to let me know I'm not wasting my time here... or add to the Gee Forum. Enjoy! Jon

http://www.g503.com/forums/viewtopic.php?p=69420

NOTE***To view correctly turn off  FIREFOX Text to Image if installed.***NOTE

It should be, but not necessarily accompanied by some form of documentation, or photographs of vehicles used during World War 2.




MVPA - GPW JUDGING STANDARD g503.com WIKI

Due to the spammers killing the G503.com Wiki, it has been necessary to move the Wiki to here. As with any changes to this page or changes to the Wiki can be made via PM to me on the G503.com website.

The Wiki as was presented on the G503.com is not complete as yet, there are missing sections and missing photos which will be updated as soon as possible.

The MVPA Judging Standard can be purchased from the MVPA


BODY CHANGES MATRIX MB & GPW Darryl Deppe's Time line



PART

FORD GPW

Approximate - Dating Your Ford GPW

Courtesy of http://rdrnl.home.xs4all.nl

WILLYS MB (Army)

NAVY - MZ , Marine and Fleet are different

Fleet - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  MZ Radio Jeep - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Marine- http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgApproximate - Dating Your Willys MB

Courtesy of http://rdrnl.home.xs4all.nl

FORD GP

GP Manual (Adobe)



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

ACCELERATOR AND LINKAGES

Grey - Same colour as the Engine

Pedal (Treadle), Accelerator rod, treadle to arm is OD

 The link, carb-to-linkage arm is cadmium plated

Spring is usually black parkerized.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

Throttle Linkage -Black

AIR CLEANER

(See Photo Link)

Ren's List of Identifying Air Cleaners used on WW2 jeeps

Main Body

Attaching Hardware

This applies to both Ford and Willys

The difference between the base of  The Stamped and the Embossed Air Cleaners.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black VHT SP139

Early – Pancake Only one which was “F” marked. AC Spark Plug Co. Model A-183-40

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

There were 8000 AC pancake air cleaners to be used on the first contract production and at the end of the day on March 23, 1942 7937 GPW's had been built. Both figures are from Ford Archives of GPW production / contract records. Each plant should/could have run out of the pancake air cleaner at different times. The records of when the change happened at each plant may or may not ever be found. (Tom Wolboldt- '09)

Followed By:-

With Decal Instructions March 1942 - Mid (June or July) 1942

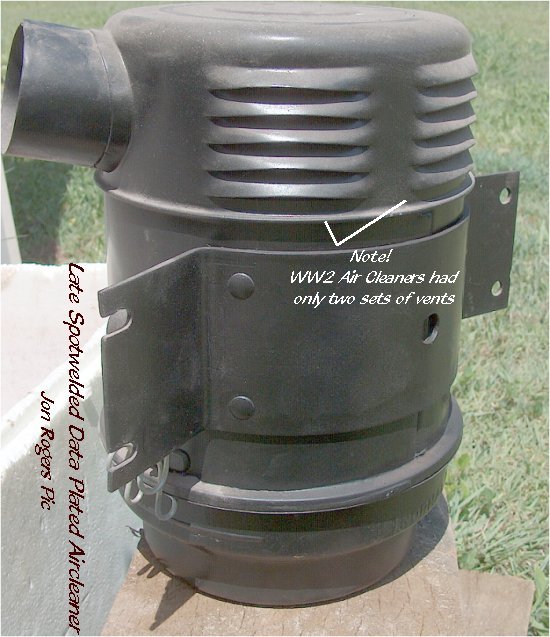

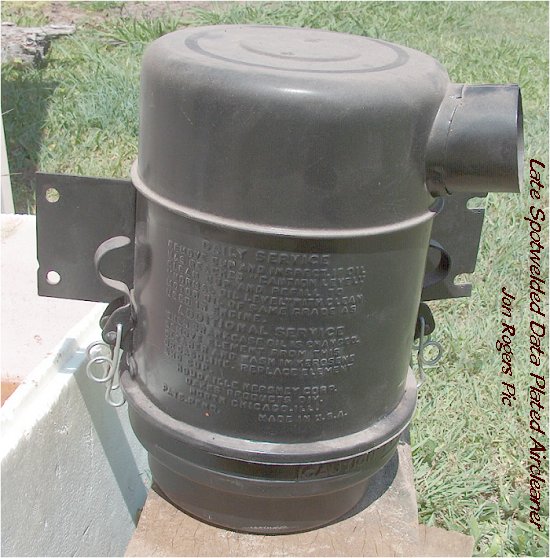

With Spot Welded Plate Instructions Mid 1942 - Late (Oct/Nov) 1942

With Stamped body Instructions  Late 1942 to end of production

FORD - NOS Stamped Body Air Cleaner Photos below.

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black

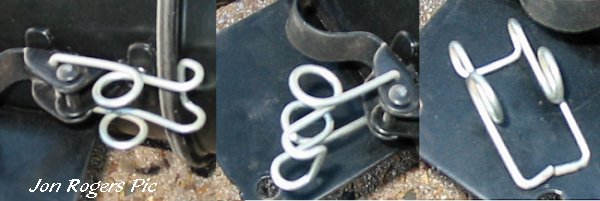

Plated, Includes clips and wing screws. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Both air cleaner brackets on the firewall are painted Olive Drab, primed in red zinc chromate, they should be "F" marked on a GPW.http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  A quick method of establishing the Correct Air Cleaner it had Two (2)  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   sets of Louvers, Post War had Three (3) Sets    http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black

Model MA up to 124309 used the AC Spark Plug Co. Model A-183-40 pancake style oil bath air filter.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

MB 124309 END OF AC PANCAKE AIR CLEANER

Replaced by Oakes Model 613313

Plated, Includes clips and wing screws

 With Spot Welded Plate Instructions Mid 1942 - Late (Oct/Nov) 1942

WILLYS - NOS Stamped Body Air Cleaner Photos below.

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

When restoring either a Ford or Willys Air Cleaner use GM Satin Black VHT SP139 These paints are specially formulated with a unique blend of urethane resins to withstand corrosion, rust, salt spray & degreasers, also, this is the closest paint available to the original so far as colour and finish.

Black

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Mounting base plate black

Plated parts - clips and  screws

See Photo above

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

If you need a Reproduction Air Cleaner Contact Rory Grenier on G503.comhttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg





AIR HORN - TO CARBURETOR

Black or Olive Drab - Same as cross Over Tube

Change date Not Known at this time

Cross over tube clamp to Air Horn - Felt. Air Horn (F Marked) to Carburetor attached with a Felt Seal/Bushing

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 and primed and Painted black hose clip clamp. SNL G503 0301C AIR CLEANER Finish "S"

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Black or Olive Drab - Same as Cross Over Tube

Change date Not Known at this time

Cross over tube clamp to Air Horn - Rubber Sleeve. Air Horn to Carburetor attached with a rubber seal and painted black clamp http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 MB Air Horn, Notice the difference between the MB and the GPW, the groove is shorter and has some welding http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Clamps changed during production The A-281 was finished in Black, the later  A-1515 was plated.



The Carburetor air horn is cast aluminium and is unique to the GP

AIR FILTER CROSS OVER TUBE SUPPORT

Black gloss enamel  OR  Olive Drab

Unknown change over date most likely late '43 to black

Hardware - Plated

Cross over tube to Carburetor air horn seals changed during production from 3 ply radiator hose to felt.

Black or Olive Drab - See Above

Block "F" Marked on GPWs  Ford part #'s show 3 x over tubes, but the 1st has no suffix, (taller tube) the 2nd has an A suffix (short used with Oakes air filter) and the 3rd has a B (with oil filler tube vent ) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Early Ford Crossover tube....

1) 5- 3/4" tall from the top of the mounting foot to the top of the tube.
2) Tube is offset to the rear of the center of the foot
3) Mounting foot is towards the pass fender, i.e. the nuts are on the FENDER side of the versicle part of the bracket.
4) Spark plug wire hole is towards the front of the bracket
5) Rubber grommet is black
6) Strengthening ribs are closer to the nuts and are SHORT like the later style, not LONG as shown in the photo
7) Tube/mount are painted the same black as the carb air horn.

Best of all, the block "F" is stamped on the carb side just above the plug wire hole so you know it's a GPW made item.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Slat Grill (Early) Support is 1/2" different to later standard support

Black gloss enamel Willys also used 3 variations, early which was taller, then as for the GPW's No F Stamping on the upright base.

There is no crossover tube,Not Applicable

AIR FILTER SPLASH SHIELD

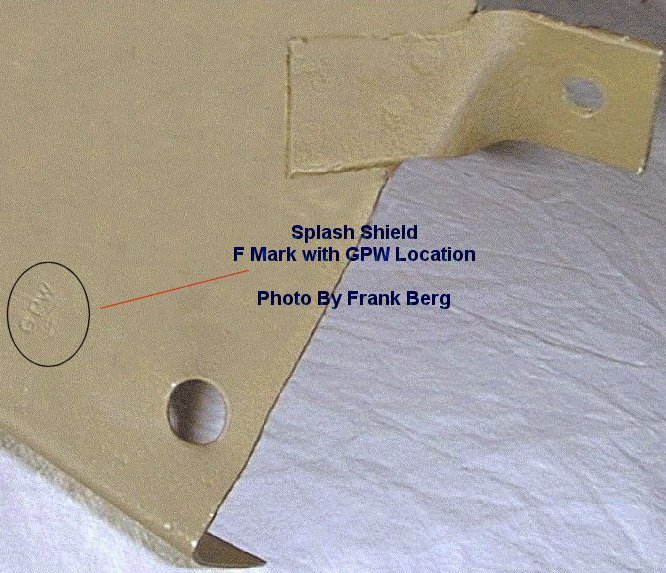

See Generator Splash Shield

See Generator Splash Shield

AMMETER GAUGE BEZEL

 Early - Paint Can Lid - Stewart-Warner http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Later - Round edge - Stewart-Warner http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Slat Grill 30-15-0-15-30
Slatgrill ampmeter. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



AXLE HUB

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  TM-10-1348 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Exploded View - FRONT

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  TM-10-1348 Exploded View - REAR

Painted Olive Drab

Painted Olive Drab



BATTERY

Brand Sizes G2W Photo & Information

By

Mark Tombleson

Correct Size

AutoLite or Willard 6V Size -10"L x 7"W x 8 5/16" H

Per:-

TM 9-803 specification of:
Auto-Lite TS-2-15
Willard SW-2-119

- Battery Cap Colours -

Willard - Red

AutoLite - Black

Available (Tar top type marked Willard) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  are as follows:
BRAND & SIZE
New Castle

Below Batteries No Longer Available. New Castle Batteries  sold to Axion power.
HD-1 8-7/8” x 6-¾” x 8-7/8”
HD-2 10-¼” x 7” x 9”


Antique Auto Battery

G1W 9 x 6-¾” x 9”
G2W 10-¼” x 6-¾” x 9”

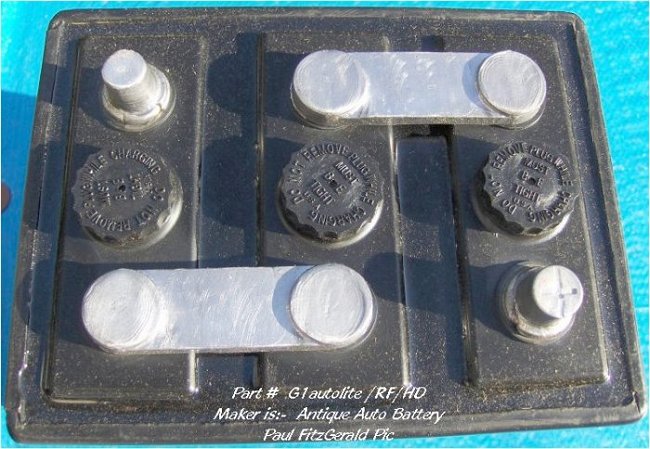

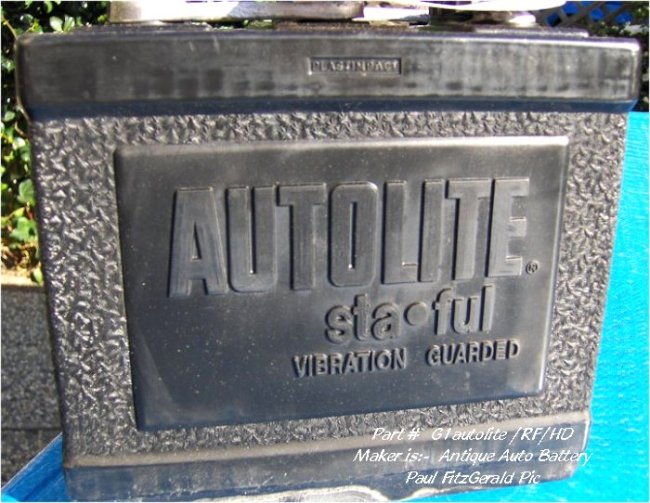

Part # G1 AutoLite /RF/H http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 Antique Auto Battery Address is:-      2320 Old Mill Rd. Hudson, OH. 44236 Tel # 330-425-2395 / 1-800-426-7580


For 6V #511 for 12V #291


In Australia try

Ariel Batteries Pty Ltd

Batteries - Automotive - Clifton Hill, VIC

All Automotive, Marine & Motorcycle Batteries

660 Smith St, Clifton Hill VIC 3068



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

  Ford Brand

BATTERY CABLE & EARTH ATTACHMENT

Unpainted

Earth Cable– Round  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Earthed to the front Cross member   EARLY- part number changed to an A number (shorter cable) and attached to the front battery tray /cross member bolt.

The change happened in '44 sometime after 24 Feb.'44 (DATE OF CHANGE TO BE CONFIRMED )

NOS Ford Cable http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   Copper Cable/coated ( tinned with solder)

Unpainted

Earth Cable– Early & Late - Round http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Full photo of the one above http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Willys Factory Photo Earth Strap http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

BATTERY HOLD DOWNS

Olive Drab

Some have been found Black with Yellow GPW and part number stencil, but only as NOS , not Factory finished

Ford Hold Downs were "F" marked. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

In Australia, you may not get the F marked one, but lucky if you can find an original Military marked with the D^D http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab or Gloss Black



NOTE! Battery Hold Down Frame on mid 43 MBs: Have been seen in black on photos of Jeeps being assembled in England out of crates.



A NOS  A-1291 Frame, battery hold down ,  has been found as  gloss black. The accompanying Strap, A-1757 was also Gloss Black.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

BATTERY TRAY

Olive Drab

Olive Drab

Battery tray & holder: Olive Drab

BELL HOUSING & COVER PLATE

The bell housing does not have the raised boss on the right side to secure the parking brake cable. There is No Hole to secure the cable

This applies to the Ford and Willys Jeeps produced between November 1941 and November 1942

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Dec. 1, '42 - # 87068 1st GPW motor w/ new style flywheel housing on transmission - Boss on the side.

Finish Colour Grey

Plate primed in Black, painted with the Bell housing, attaching bolt head also painted grey

Pre December 1942 GPW - No Boss - Bell Housing

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Castings made by Wilson Foundry and Machine

On B/housings with the boss, Use Ford Part No. 20304-S2 Screw 1/4"-20 x 1/2" Hex. head and Ford Part No. GPW-2270-B Clip 5/16" . Ford Part No. 34805-S2 Lock washer 1/4"

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Finish Colour Olive Drab

Unknown original primer colour at this time for the inspection plate. Painted with the Bell housing, making the plate O/D, attaching bolts also painted O/D

On B/housings with the boss, Use Willys Part No. 51763 Screw 1/4"-20 x 1/2" Hex. head and Willys Part No. A-5393 Clip 5/16. Willys Part No. 52706 -S2 Lock washer 1/4"

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

M-1788-H Grey paint same as the 9N Tractor Grey http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



It's also been observed as OD

BLACKOUT DRIVING LIGHT and FENDER MOUNTED GUARD

Olive Drab - Face of the B/O light is Black Drab also under the hood of the bulb housing. Ford Marked. However Other manufacturers lights have been found in Ford marked NOS boxes.

Guard - Factory fitted "Horseshoe" guard fitted from July/August 1942. Small "F" mark slightly right of center top.

Some early GPW's were retrofitted with the "Tombstone" blackout light bracket  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab - Face of the B/O light is Black Drab also under the hood of the bulb housing.  Mostly, but not always fitted with Corcoran-Brown brand.

Guard - Factory fitted "Horseshoe" guard fitted from MB serial number 163750  July 1942.

Possible retrofit of the "Tombstone" guard on earlier Willys MB. Early "Tombstone" guards had holes at 3¾"apart http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

BLACKOUT MARKER LAMPS

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  TM-10-1348 Exploded View

Olive Drab Housing & Front Door

Ford Doors are "F" marked as is the top of the Housing with a faint "F" script

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Screw, Door - S23 Rustless Steel, Polished head is usually Olive Drab,    Nut attaching is S2 Raven finish (Parkerized)

It has been found with inspection Marks in yellow Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab Case & Front Door

Screw - S23 Rustless Steel, Painted head is OD, Nut attaching is S2 Raven finish (Parkerized)

Assembly - Olive Drab



Threaded Spindle - Plated

Seal - Rubber

Lens - 1 Clear and 1 Blue

Louvered Cover - Black

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

BLACKOUT LIGHT SWITCH

Cole-Hersee

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Douglas

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

BODY TUB
Change from Olive Drab
ARMY MOTORS ARTICLE
Olive Drab. Olive Drab. Usually Red primer. However, some MB's dated Feb '42 have been found with yellow zinc chromate primer on the tub and front fenders. ( Doug. Ingram 2014)

BOLTS & NUTS

Drilling & Tapping Sizes of Machine Tread Screws Commonly found on jeeps

MS Word Doc.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Machine Thread Screw Head Dimensions

MS Word Doc

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

VARIOUS FINISHES - English Version -Click on this link for Claude Pons latest GPW & MB List MS Excel Format (*.xls)

French Version - Claude's Bolt List can be downloaded in French. Pdf Format

- VARIOUS FINISHES -

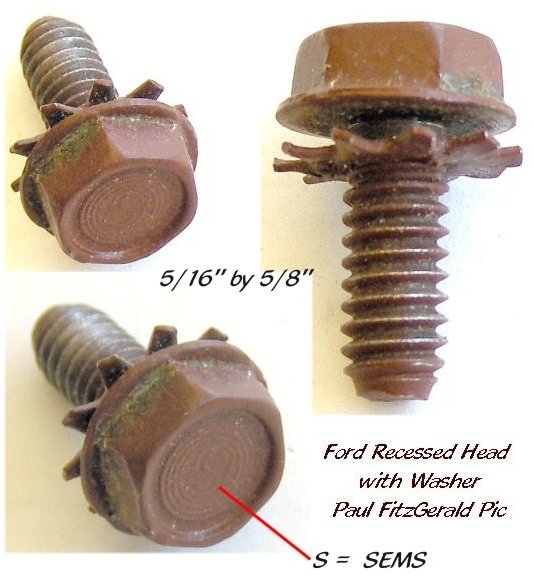

The Bolt faces on "Slat Grill" Willys jeeps (roughly the first 25,000) were marked TR 20. This includes bolts of all sizes found all over the jeep. Not every bolt was marked this way but most were.

This applies to the Willys Jeep produced between November 1941 and May 1942

Spreadsheet MB BOLT Research Download
 Download XL File Here
To Contribute  Click Here

BONDING STRAPS

All the bonding straps for GPW's & MB's are available through Ron Fitzpatrick

Unpainted

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Unpainted

BRAKE DRUMS

 Ford - Kelsey-Hayes - Chev (All) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Painted Olive Drab Outside

Red Primer inside Backing plate and Hub

Known Manufacturers found on Fords - Ford - Kelsey-Hayes & Chevrolet All Had the brake adjusting slot. Chev appear to be replacements.

Painted Olive Drab

Red Primer inside Backing plate and Hub

Known Suppliers to Willys - Kelsey-Hayes & Chevrolet. Chev appear to be replacements All Had the brake adjusting slot



BRAKE LINES

Natural although may show signs of over spray painted after axle assembly

Flex lines left natural

Natural although may show signs of over spray painted after axle assembly

Flex lines left natural



BRAKE MASTER CYLINDER

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  TM-10-1348 Exploded View

Painted - Olive Drab

 Possibly after assembly to the Frame/Chassis

Master Cylinder Heat Shield - Stamped in two places and painted Olive Drab

Master Cylinder Sender Unit - All natural , not painted http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

It would appear that Early Ford used Plain hex head bolts to hold the Master Cylinder Inspection Cover to the floor. Later, that is, up to September '42 ( Approx.) a mixture of Plain and Recessed head type bolts were used on the Transmission Cover and Master Cyl. Covers  After this Date recessed seems to be more prevalent This is yet to be confirmed.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Eye Bolt Assembly Master Cylinder  - OD

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Fitted - Unpainted Painted - Possibly after assembly to the Frame/Chassis was painted Olive Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

BRAKE - CLUTCH PEDALS

Olive Drab

Script "F" Marked on Shank

1942-1945 CLUTCH  CAST-(Rounded End)  BRAKE- CAST-  (Rounded End) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg





Olive Drab

1941- Early 1942 CLUTCH A-434 - CAST Same as the MA (Sq. End,)  BRAKE- A-1359 - CAST-  (Rounded End)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Mid 1942-Mid 1944 CLUTCH A-1360 - CAST-(Rounded End)  BRAKE- A-1359 - CAST-  (Rounded End)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Mid 1944 -End of Production - Willys changed to the pressed steel squared edge pedals in 1944 with Contract W-5 with Part Numbers CLUTCH A-8440 - BRAKE A-8477

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Sprayed with A-10456 GRIP-TITE a coarse textured material. (Nabholtz)



 BRAKE PLATES - INSIDE -

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Dark Red Primer

Red Primer

Please Note! Some Very Early Slat Grill MBs have been found with Yellow Zinc Chromate Primer.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



BRAKE SHOES & Hardware Attaching Ancillaries

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgSNL G503 Brake Parts Image with Part Numbers

Brake Shoe Metal is Unpainted, some found NOS with Black Primer  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Pin - Plated - FM 91A 2027

Eccentrics - Plated - FM GP 2038

Plate - Plated - FM 91A 2030

Cam - Brass - Unpainted FM GP 2028  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Spring - Painted - Usually Dark Red FM GP 2035  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

All Nuts and Washers - Plated - External surfaces over sprayed Olive Drab

Kelsey-Hayes Shoes stamped with a Script "F" and Capital "K" http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Brake Shoe Metal is Unpainted, some found NOS with Black Primer

Pin - Plated - W-O 637899

Eccentrics - Plated - W-O A-754

Plate - Plated - W-O 637901

Cam - Brass - Unpainted W-O 637900

Spring - Painted - Usually Dark Red W-O 637905

All Nuts and Washers - Plated - External surfaces over sprayed Olive Drab

BRAKE SLAVE CYLINDERS

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  TM-10-1348 Exploded View

Casting Left Natural - Unpainted

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Casting Left Natural - Unpainted

Casting Left Natural - Unpainted

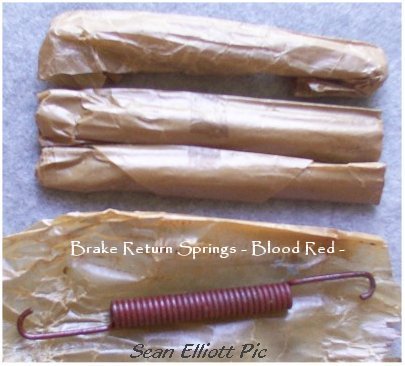

BRAKE SPRINGS

Unpainted, dark blood red or red oxide

Unpainted or painted Red

BRIDGE PLATES - If Fitted -

USMC REGISTRATION NUMBER YELLOW PAINT CODES

If we go by the article written by Walter Terzano et al on USMC Vehicle Markings in Military Magazine some years back--this is what he says is used. It should be noted that there were no references giving in the article on were he got his information.
For FS 24052 Semi-Gloss Forest Green------FS 23538 Semi-Gloss Yellow
For FS 34052 Lusterless Forest Green--------FS 33538 Lusterless Yellow
All American Wonder number one and two lists the Ditzler (PPG) number, which is the correct colour, as 81958 USMC Yellow for the marking paint on pages 94 and 225.

The can of paint is Tempo Profession Choice, Custom Colour Universal Blend, DDL81958 Yellow SPEC-13538 using No. 865 Universal Blend and is 12oz. when filled.
 Beachwood  lists the USMC marking yellow, their number B2422-1. By Mark Tombleson

-NOT A FACTORY FITTED ITEM-



 -Chrome Yellow - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  With Matt Black Number

Closest match is Spray Lacquer TS-47 Chrome Yellow by Tamiya or Humbrol "US signal yellow" One Spray can should be enough

When used in conjunction with a Trailer the usual was 2/2. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Usually a disk, 8" in Diameter, painted yellow. (Canadian were 7½ “) or painted directly onto the vehicle.



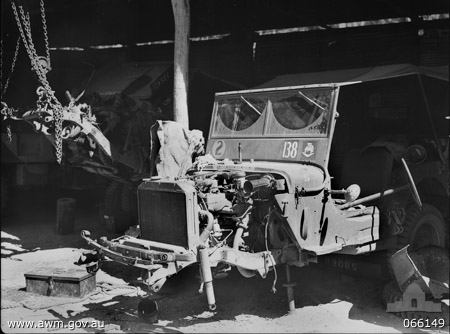

- AUSTRALIAN -

Usually not a separate disk, the Number "2" was painted directly onto the windshield frame sheeting. Chrome Yellow background and black number "2"

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

-NOT A FACTORY FITTED ITEM-



- UNITED STATES -

General Mark Clarke's jeep in the ETO http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



- FRENCH -

From right to left, on the lower part of the windshield :
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Claude Pons Grandfather
- Bridge plate-
- National symbol-
- French "Armée de l'Air" blue-white-red roundel
- TQM code : yellow/blue/yellow bars & blue "N"

CANVAS - TOP (Hood)

The original was OD.

If you want to be specific, the top was made from:

Fabric - #8 Duck - Olive Drab 72" wide with the following characteristics:

WATERPROOF & FIRE RESISTANT SULPHUR DYED TO CONFORM TO GOVT. SPEC. #CCC-D-746 -MILDEW PROOFED IN ACCORDANCE WITH GOVT. SPEC. #AXS-1134 TYPE I OF THE LATEST ISSUE COPPER NAPTHENATE RESISTING AGENT (OR RESISTING AGENT PENTACHLOROPHENOL AS ALLOWED BY E.C.O. 8669)

The canvas hood was folded and stowed beneath the front passenger seat. There are four footman loops attached the the cross bars of the seat and two single straps were used to hold the folded top in place.

Nos Ford boxed top roll straps. Strap, top roll FM-GPW-1152950. (Stowage Straps) Photo below.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

45.5in Long from the top of the loop at the buckle end to the U shaped metal tip at the other end x 1" wide The buckles are black coated brass pressed from flat stock. The buckles do not have an anchor stamp on them.

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The original was OD.

If you want to be specific, the top was made from:

Fabric - #8 Duck - Olive Drab 72" wide with the following characteristics:

WATERPROOF & FIRE RESISTANT SULPHUR DYED TO CONFORM TO GOVT. SPEC. #CCC-D-746 -MILDEW PROOFED IN ACCORDANCE WITH GOVT. SPEC. #AXS-1134 TYPE I OF THE LATEST ISSUE COPPER NAPTHENATE RESISTING AGENT (OR RESISTING AGENT PENTACHLOROPHENOL AS ALLOWED BY E.C.O. 8669)

CANVAS - SEATS & SPRING CONSTRUCTION

Variations Include

Zippers
No Zippers

Zipper direction
Padding types
S-Springs
Coil Springs
Three-tab
Full tab

The original was OD. Cloth

THREE different styles for FORD

SEAT SPRINGS - S-Type http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

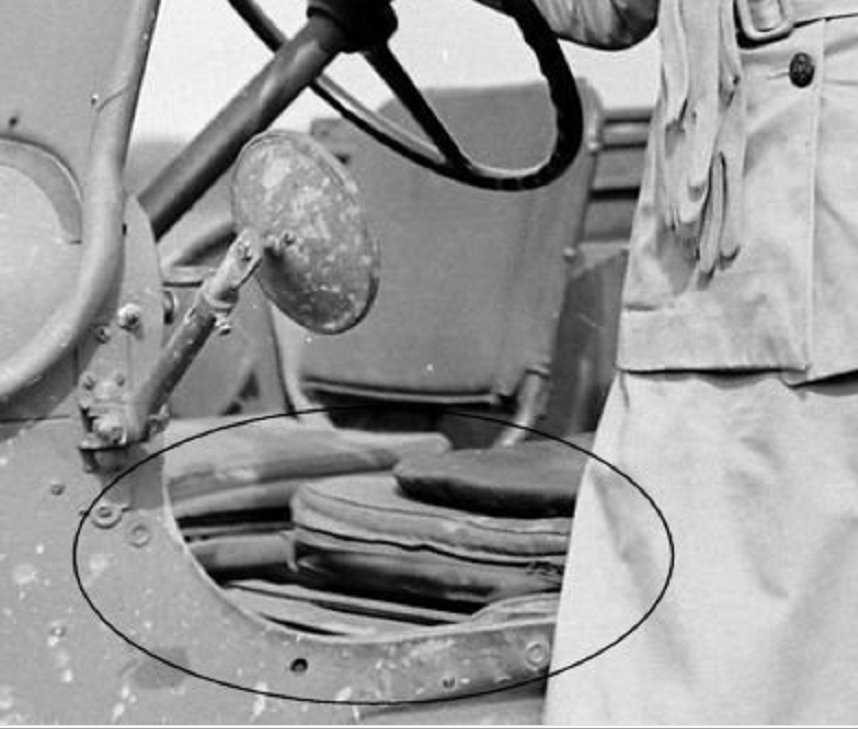

1st Style - SEAT Zippered http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

2nd Style - Seats Non-Zippered

The original was OD. Cloth

FIVE different styles for WILLYS

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Around MB-185700 Willys went to the "S-type" spring....from 11/42 - 3/44.

CANVAS - HALF DOORS

Olive
Canvas and edge binding
colours varied depending on manufacturer, the colours didn't necessarily match the seats or the canvas top.
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

CARBURETOR

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  TM-10-1348 Exploded View

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgSNL G-503 Exploded View

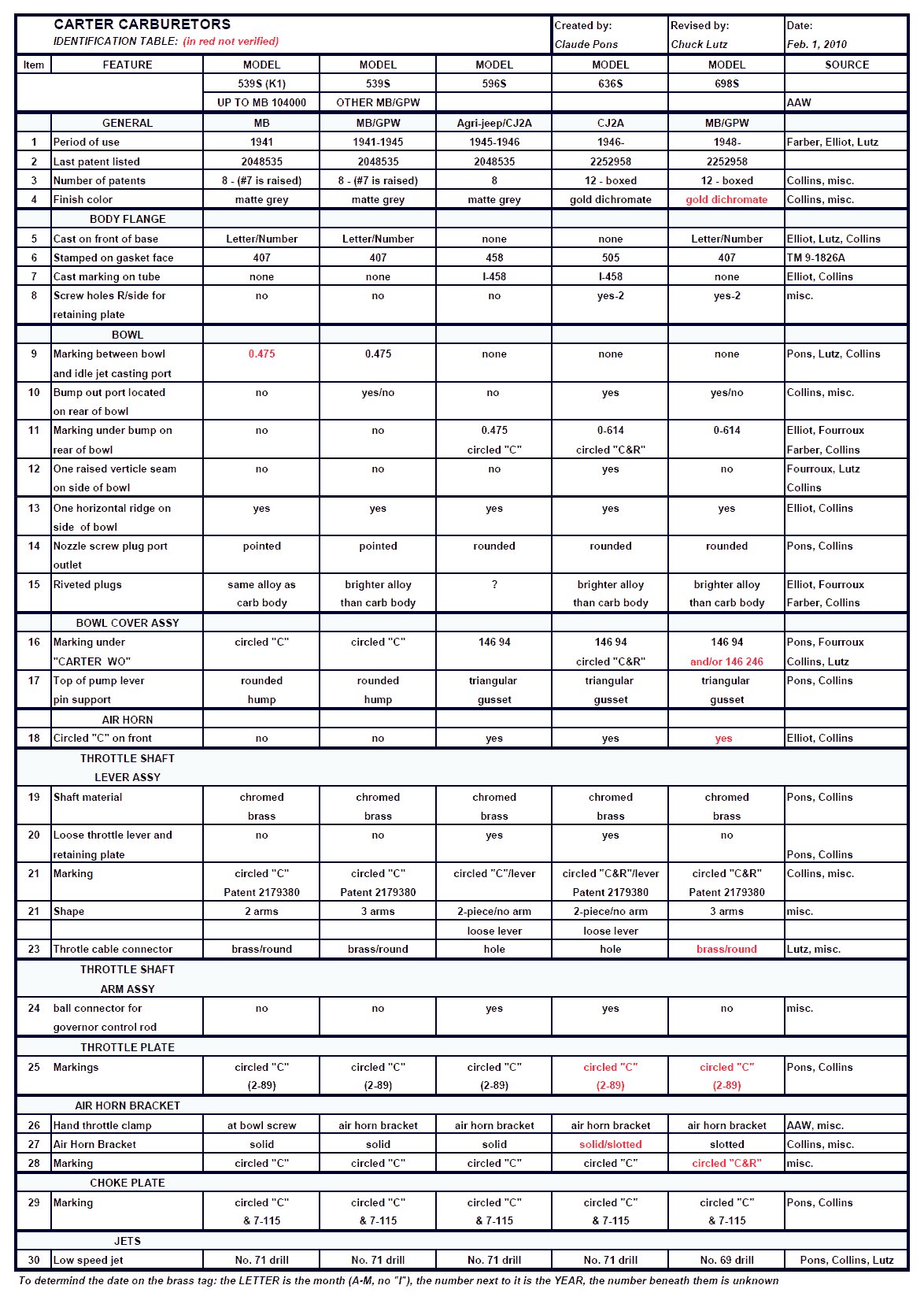

http://jeepdraw.com/images/Claude_Pons_CARTER-ID_Chart-s.jpg

Claude Pons ID Carburetor Chart

Click here UPDATED February 2010 ADOBE PDF FILE . Same File as a Jpg click on Image above

French Re-Built SOLEX - STARTING PROCEEDURE - ARMY MOTORS ARTICLE

Natural Aluminium Grey NOT PLATED  Carter W0 539 S

Black Base stamped with 407 and a Letter

Attached to manifold with Parkerized Jam Nuts

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Natural Aluminium Grey NOT PLATED  Carter W0 539 S

Black Base stamped with 407 and a Letter http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Holly  847D

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

1941 GP only.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

CHOKE & THROTTLE KNOBS

B/O Drive http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Metal knobs with raised lettering, painted Olive Drab,  raised lettering painted Ivory which is Off-White as specified in the original blue prints.  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

GPW Throttle and Choke knobs were always metal, they didn't change to plastic. (Updated 9 Feb 2012).(Tom.W.)



 Early- Contract W-1 two part metal construction, Olive Drab with White raised lettering.

Late Contract W-4 (Mid '42) Changed to Plastic Knobs Engraved, filled with white

  The choke and throttle knobs are green plastic with a "C" and "T" engraved. Engraved Letters  "C & T" are painted Red.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Reproductions available through Richard Sanders

CIRCUIT BREAKERS  & BRACKET
(Under Dash)
Available here
Known Brands Used on Both Ford & Willys
Smith,
Klixon, C-B
Ford Circuit breakers made by SMITHS http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
Bracket is Painted OD
Attaching Screws  - Plated
Length of screws Varied for the sealed and unsealed breakers

February 1945 SNL you will see them all listed.


GPW-12250-A, WO-A-1733, Breaker, 5 amp.(between ignition switch and gas gauge on instrument board) (superseded by Breaker GPW-12250-E, WO-A 15804)
GPW-12250-B, WO-A-1734, Breaker, 15 amp.(between ammeter and horn) (superseded by Breaker GPW-12250-E, WO-A 15804)
GPW-12250-E, WO-A 15804, Breaker, 15 amp.(supersedes Breaker GPW-12250-A, WO-A-1733 and Breaker GPW-12250-B, WO-A-1734)

The 30 amp CB is GPW-12250-C WO-a-1349
Willys Circuit Breakers

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

CA-5  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
CDA-15 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
Willys-Overland List of Parts dated 7-5-44  has the two 15 amp CDA breakers
Bracket is Painted OD
Attaching Screws  - Plated

Length of screws Varied for the sealed and unsealed breakers.
WO-5780 #8-32 x 5/8 long machine screw had been lined out and WO-6286 #8-32 x 3/4 screw listed in its place. This extra length was necessary due to the sheet metal backing on the dustproof breaker.

CLUTCH CONTROLS

SNL G503 Image http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Pedals Clutch & Brake - Olive Drab

(Pedals - Cast with raised sections)

Shaft (Tube to Pedals) Olive Drab

(Shafts "F" Marked)

Clutch Control Tube - Olive Drab

Washers - Plated **

Split Pins - Plated **

Bolts - Plated ** ("F" marked)

Spring - Olive Drab

** Assembly - spray painted

Pedals Clutch & Brake - Olive Drab

Shaft (Tube to Pedals) Olive Drab

Clutch Control Tube - Olive Drab

Washers - Plated **

Split Pins - Plated **

Spring - Olive Drab

** Assembly - Spray painted

COIL

For both WILLYS and FORD, D Washers are not listed until TYPE 2 Suppression was used...

FORD
1. Ford D's are "F" Stamped.
2. NOS "F" marked D's are plain.
3. SNL ORD 9 G-503 lists only ONE of them.....plain, S, black enamelled.

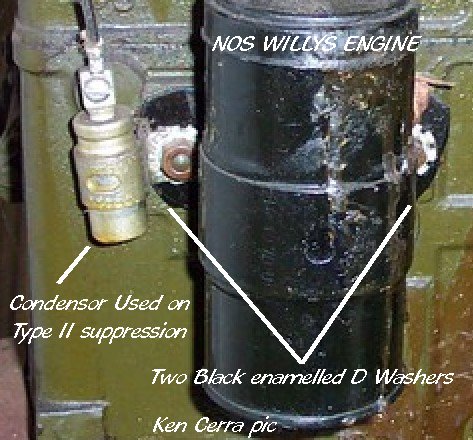

WILLYS.
1. As evidenced by factory engine... Black enamelled.
2. Quantity (At least by Willys) is TWO.

OD or Black Case

Bakelite top is Brown or Black as found on a NOS Crated engine  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Early coils are "F" stamped into the case. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

D-Washer holding the coil bracket to the engine block is plain steel, unpainted , un-plated "F" marked on GPW's  as seen in photo above. See information on the left.



Olive Drab or Black Case

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

D Washer - See Info on the left

Brown

DATA PLATE/ ATTACHMENT

For GPW's Send close up high Resolution Photo of your Data Plate and frame number to Tom Wolboldt for research and Manufacturing plant information.

Data Plate Images

http://ww2jeeps.com/htm/dataplate.htm

Riveted - EARLY - Brass plated Steel for Brass Data Plates

Cad. Plated Steel Rivets for zinc/steel and Aluminium Data Plates

Available through http://www.dataplates4u.com

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgEARLY - Plated Pan Head self tapping Screws

MB 120680 END OF SLAT GRILLS WITHOUT GLOVE BOX

Machine Screws and special stamped Nuts

Available through http://www.dataplates4u.com

DATA PLATES

Brass on Black

DASH & INSTRUMENTS

Sean's GPW & MB Speedo and Gauges

See also Dave Aro's Speedo Pages for photos of faces and Brands

Feb to March 1942
Stewart Warner or King Seeley speedometer with long needle.

 Oil, Amp and Temp gauges

SWhttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

KShttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Slat Grill Dash, Note the GAS Gauge and the Speedo reads in 10 MPH increments with no single MPH marks http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Slat Grill Gauges have larger diameter threaded attaching studs at the rear compared to the usual MB gauges.  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

MotoMeter

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The instruments are 11C part numbers and are from the 1941 commercial truck, as is the speedometer which is a 0-100 mph Waltham.  The speedometer case was unique to he GP and had tabs welded to the side to hold it to the dash.  The trim ring was unplated. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Decals are available through Mac's Antique Auto Parts http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://www.macsautoparts.com/

DASH & INSTRUMENTS

SPEEDOS 1

March 1942 to Jan 1943
Stewart Warner or King Seeley speedometer with long needle. 65mph
Stewart Warner Fuel
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  (long needle) and Amp gauges.http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  (block F at bottom of Amp face)
Stewart Warner
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgor AutoLite Oil and Temp gauges.

KShttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Slat Grill Speedo http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Gauges - AUTOLITE

All bezels are painted Olive Drab not Black

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  FUEL AUTOLITE

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg OIL AUTOLITE http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg TEMPERATURE AUTOLITE http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The GP used a "start" button, a High Beam Jewel and a panel light toggle switch.  All off the shelf items.

DASH & INSTRUMENTS

 SPEEDOS 2

Jan 1943 to April 1943
Stewart Warner or King Seeley speedometer with short counterweight needle.  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Stewart Warner 403261 Counterweight http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

KS ODOMETER faces white with black numbers
Stewart Warner Fuel (long needle), Amp,  Oil and Temp gauges.
(block F at bottom of Amp face)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

BEZEL 01A 10876-A
GLASS 01A 10880-A
SPEEDOMETER 11C 17255-A
OIL PRESSURE 11C 9273-A
FUEL 11C 9280-A
TEMPERATURE 11C 10883-A
GENERATOR CHARGE 11C 10850-A

DASH & INSTRUMENTS

SPEEDOS 3

Feb 1943 to Aug 1943
Stewart Warner or King Seeley speedometer with short needle.
Waltham speedometer with long needle.

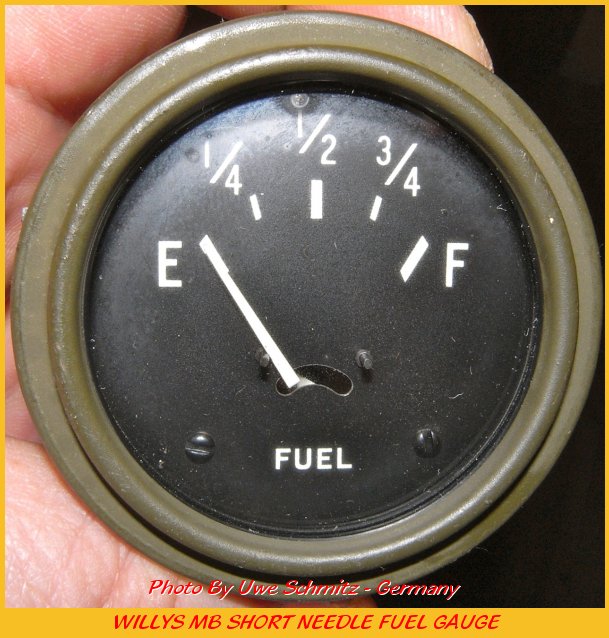

Stewart Warner Fuel (long needle. short needle from April), Amp, Oil and Temp gauges.
(block F at bottom of Amp face)

DASH & INSTRUMENTS

SPEEDOS 4

Aug 1943 to April 1944
Stewart Warner, King Seeley or Waltham speedometer with short needle.
Stewart Warner Fuel (short needle), Amp, Oil and Temp gauges.
(block F at bottom of Amp face)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

SPEEDOS 1

DASH & INSTRUMENTS

SPEEDOS 5

April 1944 to end of production
Stewart Warner, King Seeley or Waltham speedometer with short needle.
Stewart Warner Fuel (short needle), Amp, Oil and Temp gauges.
(block F or Stewart Warner 403398 made in USA at bottom of Amp face)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

DE CONTAMINATING APPARATUS M2
(Photos Of NOS M2's here)
Late ACM body tubs fitted with mounting holes behind the front passenger seat. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  The tub has captive nuts. Fitted with Round head #10 x 24 machine screw 3/8" long, plain washer, lock washer, and nut, 6 each.
M2 is Grey - Satin Finish
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgLate ACM body tubs fitted with mounting holes behind the front passenger seat. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  The tub has captive nuts. Fitted with Round head #10 x 24 machine screw 3/8" long, plain washer, lock washer, and nut, 6 each.
M2 is Grey - Satin Finish

Differential Axles

The changeover from cast to stamped covers looks to have perhaps happened sometime in early to mid '44 ( Tom.W)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg





DISTRIBUTOR

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View - EARLY IGC-4705

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg SNL G503 Image EARLY IGC-4705

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  SNL Exploded View - LATE IAD-4008 (Dustproof)

Date Codes Link

From Ford motor assembly records the first use of the IAD 4008 in a GPW motor assembly was on 22nd June, 1944. Actual use in a GPW would most likely be in a time period of 5 to 10 days after the June 22, '44 date. "

Supplied By Tom Wolboldt - 2014

Satin Black/AutoLite

Use Satin Black VHT SP139

Black Stamped steel tag

Early "Short", IGC-4705,

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

 later June 12th-17th - '44 "Tall" Dustproof IAD 4008 -

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

GPW motors with a casting date later than about June 12th to June 17th should have a 4008 distributor due to delays from casting to production line.

See Side Note

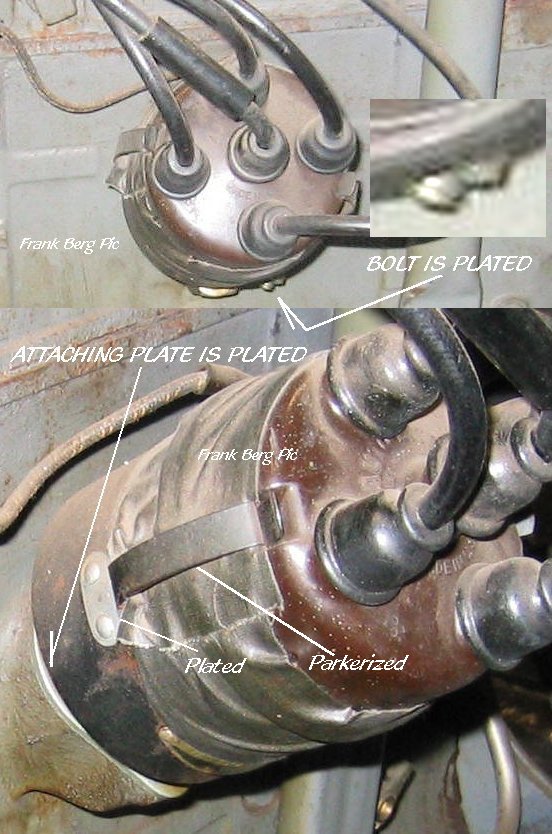

Mounting Plate to Engine Block - PLATED

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Bolt and Nut Mounting Plate - PLATED

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black/AutoLite

Use Satin Black VHT SP139

Black Stamped steel tag

Early "Short", IGC-4705, later March/April '44 Changed at Engine Number 380269 "Tall" Dustproof IAD 4008

A-9075 (Auto-Lite IAD-4008) it was first installed: Motor MB-380269. All MB motors before that motor serial number used the earlier A-1244 regular distributor (AL IGC-4705).

Mounting Plate to Engine Block - PLATED

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Bolt and Nut Mounting Plate - PLATED

Photos of an NOS Distributor

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

  Unpainted - left natural metal finish. Silver appearance

DISTRIBUTOR - ROTOR & CAP

Cap - Brown

The ROTOR  Brown  IG 165 7R

Same part number for both the 4705 and 4008

The CAP for an IGC-4705 is a BROWN AUTO-LITE with vent holes off-axis to the dizzy mounting clips.



The CAP for an IAD-4008 is a BROWN AUTOLITE with vent holes covered by the dizzy mounting clips.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Cap - Brown

Rotor - Brown

Same as the GPW (Left Column)

DOOR SAFETY ITEMS

Brackets, Straps Etc.

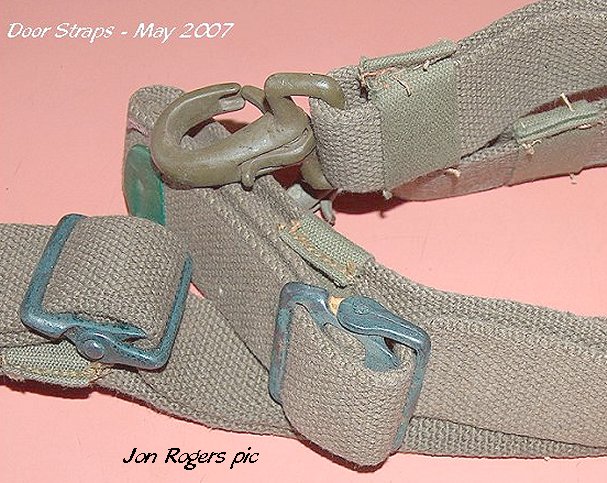

SAFETY STRAPS http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

SWIVEL BRACKET, CAST - Olive Drab.  Script "F" marked bolt http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

STRAPS - Olive to Green Webbing , Colours vary depending on Manufacturer. Straps measure 64 inches long x 1.5 inches wide. Straps found wider (2") are Post War French.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 Early - Leather Strap retainers are seen on very Early GPW's (Mark Askew's 1st book about rare jeep variants See Page 34) but this may be from the GP Production, No GPW's are recorded as having leather retainers fitted as standard.

GPW's fitted with Webbing retainers from 1942-1945



- HOOKS -

Early - Cast, 1941 to 1943 approx. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late Stamped Steel Later. 1944 to 1945 approx (No date known at this time) Approx. Date is 20Jan1944 from Cast to Stamped http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



DASH EYE RING - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Olive Drab, "F" script in casting. Factory - the eye is set at Horizontal, Spring washer and nut are plated - Unpainted (Not seen up behind the dash)

BRACKET, CAST or PRESSED STEEL - Olive Drab



STRAPS -Olive to Green Webbing , Colours vary depending on Manufacturer. Straps measure 64 inches long x 1.5 inches wide. Straps found wider (2") are Post War French.

Slat Grill Safety Straps

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



- HOOKS -

Early - Cast, 1941 to 1943 approx.

Late Stamped Steel. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   1944 to 1945 approx (No date known at this time)





DASH EYE RING - Olive Drab,  Factory - the eye is set at Vertical, Spring washer and nut are plated - Unpainted (Not seen up behind the dash)

Bracket - Olive Drab http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Straps - Leather retaining loops with four rivets. This type was used on both the 1st and 2nd series GP's

DRIVE (PROPELLER) SHAFTS - Front & Rear

Olive Drab

TM 9-1803B April 1944

Propeller shafts
Shaft diameter 1 1/2"
Length front 21 11/16"
Length rear 20 1/32"

Olive Drab

For Fat or Skinny Rear See:- http://www.g503.com/forums/viewtopic.php?t=76433

Olive Drab

Small diameter front & rear

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

EARTH STRAPS & Earthing Points on the body and parts

Left as Natural

See Sven Kunkler's site

Earth Straps

Body & Parts

It should be noted that on later ( Type 2 suppression) Composite bodies the round earthing points on the fenders were rectangular , made by over spraying the earthing points with 3/4" wide tape.



ENGINE

Ford record indicate that on 1May'42 motor # 26207 was the first to be painted M-4084-G Grey paint. On 24Sep'42 Ford started using M-1788-H Grey paint ( same as the 9N tractor ) on GPW engines. The records do not show what paint was used for the GPW motors before #26207. The GP used the 9N Grey ( M-1788-H ) on the motor and this may have been carried though to the first GPW's. Ford motor assembly records show paint # M-1788 Grey for 9N and Ford designed 4 cyls. before GPW # 26207 and paint number M-1788-H Grey after the 24Sep'42 date for GPW and Tractor motors. ( Supplied By Tom Wolboldt ** '07)

Engine Identification Images

http://ww2jeeps.com/htm/Lheadmain.htm



There is speculation that in the Summer of '42 - March-July 1942  That some GPW engines were painted BLUE.

Should you have an engine in the range of  GPW-55*** - GPW- 5**** Please let Ron F. or Tom W. know.

WEIGHT/MASS

Willys/Ford tear down report, April 1943



Engine assy., trans., transfer case, carb., complete with starter, generator, coil and all electrical fittings and wire, filter. (no oil in engine)



-Ford 547.00 lbs.- 248.16 Kg -

-Willys 557.00 lbs.- 252.6 Kg-



Engine complete, less trans., and transfer case----

-Ford---425.00 lbs -192.7 Kg-

-Willys---432.00 lbs - 196 Kg-

Army Motors Modification for Engine Side Cover Studs

Pertains to GPW 232051 to 243405

Dating Pre July 1943 Engine Blocks http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Dating Post July 1943 Engine Blocks http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

A=Jan B=Feb C=Mar D=Apr E=May F=Jun G-Jul H=Aug I=Sep J=Oct K=Nov L=Dec

Codes found after either 3, 4 or 5 for 1943,'44,'45 are 1, 11, 2, or 22 **

Exceptions - There were many

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Upside Down Casting Date http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Ford Factory Photo Mid '43  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

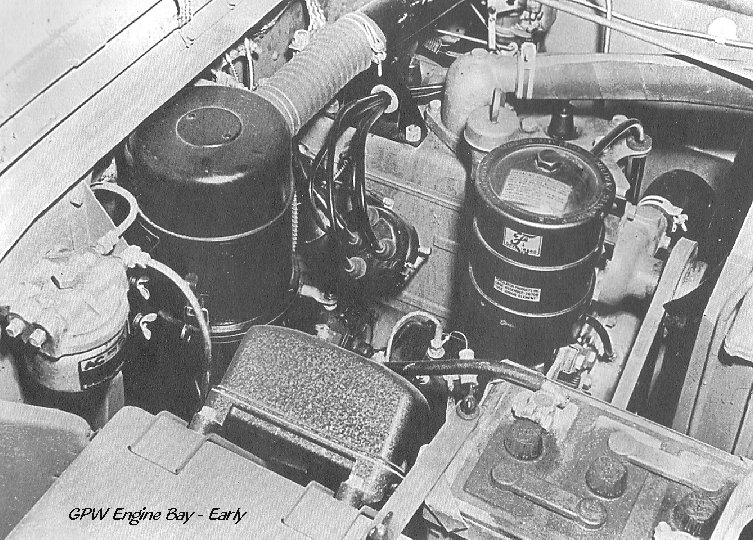

ENGINE BAY - EARLY PHOTOS  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

ENGINE BAY - LATE PHOTO  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Grey Ford Engine Paint: No primer used

Suitable alternatives used
Ford GPW (late): Plasti-Kote Engine New Enamel Ford Grey No. 216 ( Try CarQuest as a Supplier)
Ford GPW: Martin Seynour number 60-19 Grey

UK Owners the GPW Engine Colour is Plasticote Mid Grey, priced at £4.99 to £5.99 per tin and you need three tins to do the job **

Massey-Ferguson Light Grey. The shading difference between it and Martin-Seynour was virtually indistinguishable.*** Added Nov07

- CYLINDER HEAD - Grey See HEAD details below.

OIL PAN - Attached with recessed head bolts http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

FUEL PUMP & Late Ford PCV VALVE  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


Timing Cover - Factory Grey

Supplied NOS as OD Some marked "F" http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  later marked SI Sheffield Metals International)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


FRONT ENGINE PLATE

Primed in Black, outside painted with engine - Grey -

Early Engine Plates didn't have the riveted reinforcing Early used Oct. '42 through late May, '43

FRONT ENGINE PLATE - EARLY  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

FRONT ENGINE PLATE - LATE  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


CRANKCASE BREATHER TUBE - Painted Grey with the engine - These were F Marked  There were two different F marks, also two different places where they were marked, Front or Back http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


Engine Drain Plug - Unpainted Left Natural Brass

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


Early Oil Pan Drain has rivets attaching the plate to the pan. The plate is "F Marked  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg This may have been fitted to any GPW up to 150782 depending on which Ford factory the jeep originated from. It has also been noted that the early oil pan, aside from the F marked plug housing, is also marked on the baffle with a GPW and an F script. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

******April 30, 1942 changed to new style oil pan at the 25755 th or 25855 th GPW motor. ( Notes are unclear which is the correct number at this time )
May 1, 1942 change from using new style oil pan 100 % of time to 50% new style and 50% old style.
Sept. 16, 1943 new style oil pan part # 6675 being used on all GPW motors. This started with the 146630 th motor.
Sept. 30, 1943 150783 th GPW motor is first motor with inside painted oil pan.******

******From Tom Wolboldt Research******

- STAY CABLE -

Attaching Hardware all Cad Plated. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Crankshaft Pulley - Gray

Early GPWs had Cast Pulleys Marked GPW-6312

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Main bearing journal tunnel sizes Willys & FORD L134 Front 2.500"  Center 2.490"  Rear 2.480"  All can be .001" undersize.

Crankshaft:
Main bearings = 2.3325. If less, regrind required
Rod bearings = 1.9365. If less, regrind required

SLAT GRILL Crankcase Breather Tube - Olive Drab http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Black primer or bare metal with cosmoline as found NOS

Olive Drab Semi-Gloss (not special Heat Resistant paint) MB only was primed prior to engine painting. Use red zinc chromate.

Crated MB Engine

Photos Below by Ken Cerra Bluebluejays@aol.com

Passenger Side - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Top - Passenger Side - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Top - Rear - Passenger side - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Top - Front - Drivers Side - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Passenger  Side - Starter Area - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Passenger Side - Coil - Dist Area - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Passenger Side Water Pump Area - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Drivers Side - http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

- CYLINDER HEAD - Olive Drab

MB changed from bolts to studs and nuts at engine number MB288835. December 10-13, 1943. See HEAD Details below

- STAY CABLE -

Attaching Hardware all Cad Plated.



Crankshaft Pulley - Olive Drab



MB Engines & Cylinder Heads
By Jim Kilborne
©2005



FUEL PUMP & Late PCV VALVE  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

M-1788-H Grey paint same as the 9N Tractor Grey

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

FAN

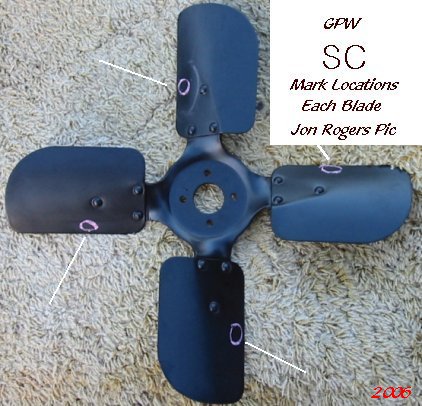

Satin Black -Usually Marked SC  [Schwitzer- Cummings] http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Unusual ''F'' Marked fan http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Mounting Bolts - Parkerized Black

Fan Belt Pulley - Gray

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black

Fan belt pulley - Olive Drab

Satin Black -4 Blade  Marked SC

FAN BELT

Length 44-1/8" - 1120.775mm
Width 11/16" - 17.4625mm
Angle of Vee 42 Degrees.

Early GPW-8620 stamped into Rubber

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Unpainted/Marked GPW-8620-A Stamped into rubber joining pad ( Early) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Mid - Rubber joining Pad Marked GPW-8620-A2 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late - Stenciled in Orange or Silver  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

No known changeover date at this time



Unpainted/Marked

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Fed Stock Number 647629 WO-A-1495 FM-GPW-8620A  19 102

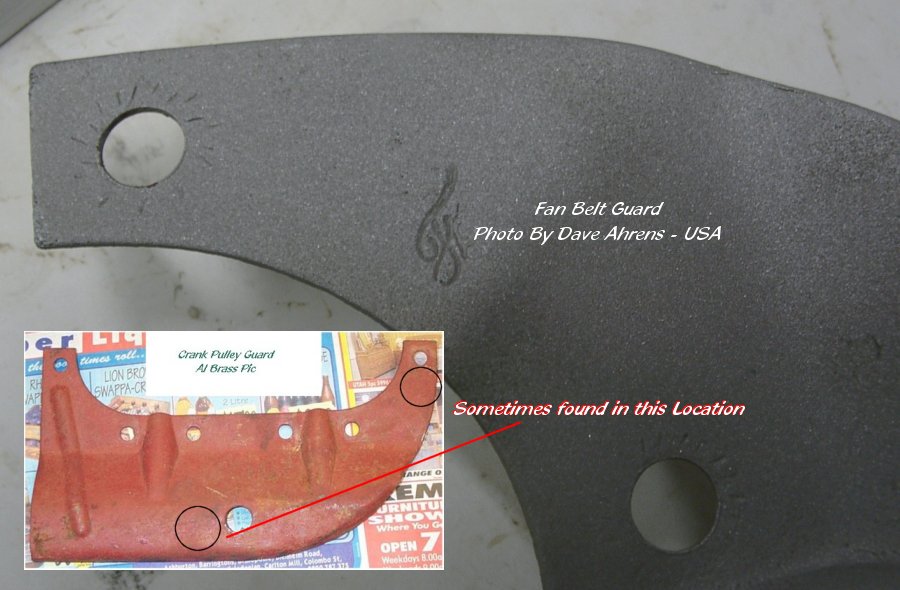

FAN BELT PULLEY SHIELD

Colour - Grey - Spacers Fitted between shield and Oil Pan

Spacer Sizes -

OD .625" ID .340" and .150" thick.

Recessed Head bolts Ford shields are "F" marked

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


Colour - Olive Drab - Spacers Fitted between shield and Oil Pan

Spacer Sizes -

OD .625" ID .340" and .150" thick.

Pulley Shield Not Fitted,

FAN SHROUD (See Radiator)


FILTERETTE

Radio Suppression box on the firewall used from start of production until approx. Mid to Late 1944

All American Wonder Vol 2. Page 208 shows only four of the five used on GPW's

Painted Olive Drab Plated Cover Screws and rivet Heads

Very Early GPW used the same TOBE filterette as the Slat Grill as shown in the MB Column.

TOBE Deutshmann - Canton Massachusetts - Type 1107-G, Group W-J

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

For Dearborn plant GPWs - DOD only one day apart, so that might give you a good idea of the change over date

Plated & Supplied Un-painted as NOS. Photos Above

GPW-50897 DOD 7-21-42 = Large lettering Tobe
GPW-51368 DOD 7-22-42 = Ford marked Sprague (Hinrik- Iceland)

18960 EARLY - FORD changed to 18960-B September 1942

SPRAGUE 18960

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



After Early 1943 - 18960 - B  TOBE

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

18960-B SOLAR

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg





Mallory Electronic Co Indianapolis GPW-18960 B3.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

- Need More Photos -



The filterette disappeared from the GPW approximately October 1944.







Painted Olive Drab



Slat Grill MB - TOBE - DEUTSCHMANN

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Location http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Enclosed  TOBE - DEUTSCHMANN  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Location http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Changed at MB-137916 to

Mallory Electronic Co Indianapolis A-5980 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Filterette Willys Part Number A- 5980 not used from 1944 'till the end of production.

For about a year GPWs had both boxes while MBs never had both boxes at the same time (Tom. W. Feb 04, 2011)
No Factory assembled MB had a filterette in '44 or '45. No factory assembled GPW should have had a filterette after about Oct. '44.(Tom. W. Mar 04, 2017)



FIRE EXTINGUISHER & BRACKET

Painted Olive Drab, Both Extinguisher and Bracket

Early "F" Marked Single Strap http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Later 2 Strap with Fire Gun No.0 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

SOS Fire Guard & Fire Gun Extinguishers http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Painted Olive Drab, Both Extinguisher and Bracket





Willys MZ (Marine) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Forrest Green

FRAME (CHASSIS)

VEP* Very Early Production

Early GPW frames were made by Midland Steel Co. and made to Willys specs. Ford purchased them from Midland direct. Later GPW frames were purchased by Ford from Murray Co.

This applies to the Ford Jeep produced between February 1942 and August 1945

TM-10 1513 & TM-10 1349 Changes to the Chassis Illustrations & Measurements

O/Drab

VEP* Ford used the Willys Chassis (Frame). GPW stamped Willys frames have been found up to GPW 15064. This is possibly one of the last Willys frames used. If you have a later Ford Stamped W-O frame contact me.

Note:- GPW 14944 has a pure Early Ford stamped frame. This may have something to do with different Ford production plants.

The vehicle identification number (VIN) can be found on the left side frame rail, at the front, near the left motor mount. The number, typically, looks like *GPWxxx* but there are many variations.

Olive Drab

Primer Used on VEP Slat Grill ( First few Months of Production) Black Primer or Combination of Black Primer and Yellow Zinc Chromate. . http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Fender mounting bolts







FOOT RESTS - Rear Floor  Olive Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

- FOOT - Spare Wheel Support

When fitted with the 2 Stud Spare Wheel Carrier - Olive Drab

Manufactured by National Stamping Company, NSC  who worked out of 204 12th Street, Detroit, MI during the War. it's now a vacant lot.

According to Ford records GPWs did not use the two stud spare tire carrier arrangement until the GPW was using an ACM type body. The tire support bracket GPW - 1419 was to be supplied in production approximately Dec. 20th according to a Nov. 20, 1943 dated document.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

When fitted with the 2 Stud Spare Wheel Carrier - Olive Drab

3 stud spare tire carrier to 2 stud, after approx MB serial number 260000, June 3, 1943

FUEL FILTER

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Tin Plated w/AC Oil Filter T-2 Printed or decaled. Changed to an in-tank filter in '45.

Firewall mounting holes were dropped about June 1st 1945 .

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Tin Plated w/AC Oil Filter T-2 Printed or decaled.

Firewall mounted fuel filter was eliminated sometime around May-June 1945. This was accomplished sometime between body number 232581 (May ‘45) and body 243776 (June ‘45)*

Firewall mounting holes were dropped about June 1st 1945

AC Brand natural body with brass bowl

Note:- It seems that the fuel filter bowls have been both a brass finish, and almost a gold finish of some kind. The gold ones appear to be older. They used the brass ones into the 1960s.

FUEL GAUGE - BEZELS

Paint Can Lid Gauges (All Stewart Warner)http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Early - Paint Can Lid - Stewart-Warner

Stewart Warner paint can lid Fuel (long needle),

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Long Needle - Stewart-Warner http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Later - Round edge - Short Needle Stewart-Warner

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Willys MB Short Needle Fuel Gauge

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Need More Information



FUEL LINES

From Filter to Carburetor Unpainted

From Flex Hose to Pump Unpainted. Unpainted Plated clip attached to the rear hole of the generator Bracket http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

From Pump to Carburetor Unpainted.

Fuel line, tank to filter is Unpainted  with traces of OD over spray after final assembly *

Elbows are Brass Marked with GPW 9268  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg there's one for the CARBURETOR, also one for the
FUEL STRAINER and the CRANKCASE VENTILATOR.



From Filter to Carburetor Unpainted

From Pump to Carburetor Unpainted.

Fuel line, tank to filter is Unpainted  with traces of OD over spray after final assembly

Elbows are plain brass

1/4" tube zinc plated

FUEL PUMP

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Manufactured by AC. Natural casting finish , bowl is metal and is Zinc or Cad Plated , not glass-

See Engine Details

The pump is fitted with a priming lever which is plated. The casting dates on the AC pump vary from 42 to 45. The casting dates can be found in the lower and upper assemblies. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Very Rare examples have been found with an "F" mark. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Manufactured by AC.    Natural casting finish , bowl is metal and is Zinc or Cad Plated -

- See Engine Details -

FUEL TANK

TANK - Lead plated steel-( Terne)

Painted O/Drab

SENDER COVER

 Early - Rubber      http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late - Pressed Steel- Plated then Painted OD

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



The first fuel tank is the small mouth 2 inch. fill hole type and has F stamped between the sending unit and the fill hole. This style tank was used until September 1942.

September 1942 to October 1942 Large Filler, with inbuilt Strainer, and extension, NO indent of the inside right front side.

October 1942 - End of production, Large filler, with inbuilt strainer and added Indent. Tanks marked OLOCA and MDA 9002-C fitted with in tank fuel filter.

Early Ford Cap - Olive Drab  Retaining ring and chain is plated.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

TANK - Lead plated steel- Painted Olive Drab

SENDER COVER

 Early - Rubber

Late - Plated Pressed Steel Painted Olive Drab

Early Willys A-C  Cap - Olive Drab  Retaining ring and chain is plated. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



GEARSHIFT BOOT

Rubber to -/-/4- later Natural leather



 Rubber to -/-/4- later Natural leather

Early Willys Appear to have been unpainted rubber,

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 Mid '42 Show painted rubber boots

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Not fitted

GEARSHIFT KNOBS

Round Black plastic, not large flat. All three knobs the same size.



Round Black plastic (As for GPW)

GEARSHIFTS

Grey housing  with O/Drab Shift levers

NOTE*Some GPW's used a black (Parkerized ?) finish. Show up Mid April to Mid Sep '43



 Olive Drab housing  with Olive Drab Shift levers

  O/Drab housing  with O/Drab Shift levers

GEARBOX REAR HOUSING MOUNTING PLATE

Olive Drab over Black Primer

The "F" script is covered by the rubber/steel insulator when installed.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

Grey

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

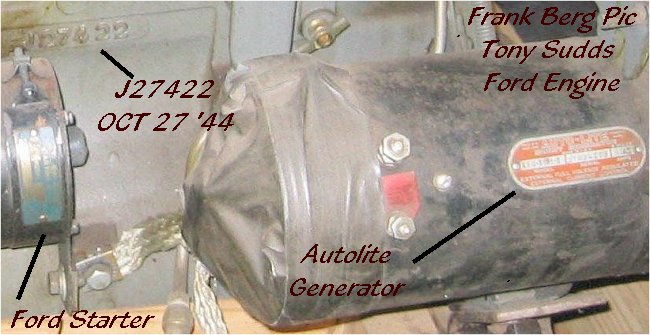

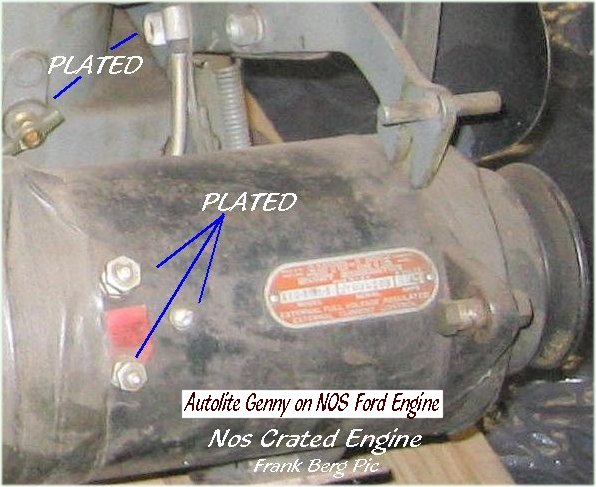

GENERATOR

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Download either the TM-10-1348 Ford List or SNL-G503 which is on the Main Page

Generators Used on Both Ford & Willys

From Ford documents, the Ford made generator with sealed bearings was started on June 16, '42. Prior to this date Autolite generators ( GEG-5001A and maybe GEG-5002D ) were used. NOTE - there is no data that I have seen showing the Autolite made generator GEG-5002D was ever used in a GPW but it may have been so more research needs done on this point. On the second GPW contract 20,184 non Ford made generators were used before the Ford made generators started to be used in the production of GPWs.

In Nov. '43 the Ordnance Dept. issued instructions to eliminate the use of ball bearings on the commutator end of the GPW generator.

On Nov. 29. '43 a quote was given to the Ordnance Dept for the price change affected by the above instructions.

On Feb. 23, '44 Ford states they have $15,000 worth of obsoleted generator parts on hand due to the change in generators.

From this data I would say Late Jan. or early Feb., '44 was the date Ford changed to the Autolite GEG-5101D generator from their own made generator. (Tom W.)

Satin Black

Ford or AutoLite Generator

Body, front and rear plates are Satin Black  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
All exterior screws, nuts, washers, and oil plate if fitted are plated either zinc or cad.
S7
As per the Ford Parts List Group 6 Electrical
This includes the screw and nut on the cover band which is Satin Black.

- Ford Generators -

1) GEG-5001A  AutoLite (By the "book") production may have started with the GEG-5002D. Most likely AutoLite fitted with the Willys framed early GPW's

2) GEG-5002D ALL FORD GENERATORS are the 5002D style. Ford Generators ended by most Ford Assembly plants by the end of 1942/ beginning of 1943

3) GEG-5101D AutoLite as per Nabholtz and crated engines used on the late (post 1943) GPW's  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

-MOUNTING BOLTS- Cad Plated

Radio Suppression Filter Fitted http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black

AutoLite Generator

Body, front and rear plates are Satin Black
All exterior screws, nuts, washers, and oil plate if fitted are plated either zinc or cad.
S7
As per the SNL-G503 Parts List Group 6 Electrical
This includes the screw and nut on the cover band which is Satin Black

MB: AutoLite Progression
1) GEG-5001A
2) GEG-5002D
3) GEG-5101D

NAVY MZ Radio  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Radio Suppression Filter Fitted http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Ford Brand

GENERATOR BRACKET to ENGINE

Grey (Engine Colour) Fords are "F" marked on the rear face.

Some have been found with Black Primer on the face attached to the engine. Most probably painted after fitting prior to engine painting.

Olive Drab

Bracket part of engine front casting

GENERATOR (AIR FILTER) SPLASH SHIELD

Olive Drab - GPW & F Marked

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Located between the Generator and right side frame member http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

GLOVE BOX

VEP = Very Early Production

Keyed Lock & Plunger Lengths

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Removal of the G/Box lock and cylinder on Keyed Locks

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

The 1st version of the GPW glove box lid is slightly different. The hole for the glove box lock is 1/2 lower than the standard hole to accommodate glove box lock A-3532. Additionally there is no hole above the glove box for the striker.

Only GPW glove box doors with a key lock as a factory item used the door spring after the GPW left the assembly plant.

First Production - Keyed Lock Hole Position http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Mid Production Non-Keyed, still with Spring Humphttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late production, Non-Keyed, No Spring Hump http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Ford Made were"F" marked inside.

Glove Box floors: Early Ford built (VEP) bodies had flat glove box floors.http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Late Ford production and ACM bodies had two reinforcing beads in the glove box floor.. The spring catch on the door went away in Oct. '44. Only GPWs with key lock glove box doors were delivered with a spring attached to the door. All other GPWs through sometime in Oct. '44 used the spring in the assembly process but it was removed prior to final assembly.

The spring catch in the floor of the glove box continued through the end of GPW production. (Tom Wolboldt 2012)

Locks Etc. See:-

http://wiki.g503.com/index.php/8.3_Ignition_switch

Hinges -

MB 120680 END OF SLAT GRILLS WITHOUT GLOVE BOX.

Hinge Plate-Gloss Black, No primer http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

GREASE GUN BRACKET

(Under Hood) IF Fitted

Painted Olive Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Painted Olive Drab

GRILL - RADIATOR GUARD

Olive Drab

 - All GPW's fitted with the Ford designed pressed grill. "F" mark lightly stamped on central top air deflector.

After April 1942 Depression added to top of the grill

Olive Drab

Welded Assembly Slat Grill - Up to MB 125809

Pressed Grill - 125809 END OF SLAT GRILL JEEPS / BEGINNING Ford Designed Pressed Grill

GROUND STRAP

Unpainted Round late-Flat

Unpainted

HALF DOOR SNAPS

Inserted after body paint applied and left as supplied i.e.:-Parkerized matte black finish, but may have traces of OD over spray after final assembly

As for GPW

HANDBRAKE

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg External HB Exploded View

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Internal HB Exploded View

O/Drab - Ford Handle Is Marked with a raised small "F" in the H/B groove. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Cable Outer Sleeve - Plated  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg attaching clip to the bell housing is plated and uses a plated screw.

Drum- Olive Drab http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

There is no record of Ford using the internal handbrake.



Olive Drab Outer - See Photo Below for internals.

The handbrake design was changed on the transfer case to an internal expanding type (A-9333, GPW 2598B) cam operated shoe and drum design. The rear bearing cap was redesigned for this drum style brake.

This applies to the Willys Jeeps produced between March 1944 and September 1945  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

O/Drab over Black

Drum - OD http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

HANDBRAKE BAND

O/Drab

Security Wiring - Adjusting Screw (Photo) Use either 16g bailing wire or stainless steel safety wire.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

O/Drab

HEAD, BLOCK, OIL PAN

Not sure what Head you have?

WW2 or Post War Click Here



Grey

Cyl. Head Torque - Bolt & Stud List

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/FORD_Cylinder_Head_STUD-BOLT-s.jpg

SNL G-503 GROUP 01

Nuts Required:-

Nut, Special Hex, (11/16") S, zinc-plated, 7/16"- 20NF - 4  No Washers under head bolts

Qty depending on year model.

For Studs and Bolts use Permatex #3 and VHT Copper Gasket Cement for the head gasket.

Olive Drab

Cyl. Head Torque - Bolt & Stud List

Before Willys Serial No. 288835

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/cyl-Willys-head.jpg

After Willys Serial No. 288835

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/cyl-Willys-head-AFTER-288835-s.jpg

SNL G-503 GROUP 01

Nuts Required:-

Nut, Special Hex, (11/16") S, zinc-plated, 7/16"- 20NF - 4  No Washers under head bolts

Qty depending on year model.

For Studs and Bolts use Permatex #3 and VHT Copper Gasket Cement for the head gasket.

For all WILLYS Cylinder head changes and descriptions go to

http://ww2jeeps.com/htm/heads.htm



HEADLAMPS

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Rim - OD  -  Bucket - OD Inside and Outside with traces of primer showing

Internal Earth Unpainted

Swivel Bolts, "F" Marked  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg washer and Nut -All Plated

  LENS - SEELITE

Headlight Bracket  Hinge Plate is Tapered - Painted Olive Drab http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Fitted beneath the grill top plate. Bolt head is from Under, Nut is on top. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Headlight Bucket is F Marked and has a drain hole http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Headlight Connector On Ford GPW's is Round

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Rim - O/D  -  Bucket - O/D Inside and Outside with predominately primer showing inside the bucket http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Internal Earth Plated -Unpainted

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


Swivel Bolts, washer and Nut - All Plated

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

  LENS - SEELITE

Headlight Bracket  Hinge Plate is Square - Painted Olive Drab http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Fitted above the grill top plate. Bolt  head is on top, nut is under.

Headlight Connector On Willys MB is Semi-Circular http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

HIP PADS

ALL METAL PARTS

Primed and Painted OD. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Felt, Hair and Spring Filling http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

ALL METAL PARTS

Primed and Painted Black http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

HOOD (Bonnet) BLOCKS

Hood AKA Bonnet & Canvas Welting

FORD GPW :

Early - Rubber - Green to August 1942. It would appear,  yet to be verified, that there were two sizes of the early Rubber Hood Blocks 1" and 5/8" in height. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Plain Wood - Not Used on GPW's

Wood with Insert Painted Olive Drab August 1942 to end of production. Various plants had varying starting dates.

Hood welting rivets: Rivets installed head-up with legs bent under lip of grille. These rivets were S2 finished

Under Hood Lever Grease Gun fitted sometime after Willys depending on which Ford Factory manufactured the jeep. Early (Jan, Feb, March) 1944 is the current hypothesis. Brands fitted were Lincoln and Alemite

WILLYS MB:
Green Rubber: Start of production to early September 1942 Veh. No. 218345. Part No. A-2922

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Wood: Early September 1942 (Veh. No 218346) to June 1943


Wood/With Insert: June 1943 to end of production

Hood welting rivets: Rivets installed head-up with legs bent under lip of grille. These rivets were S2 finished

Under Hood Grease Gun Lever grease gun and bracket were issued by the factory on a Willys BOM page dated 13 NOV 43 and MB-NOM-12 with the BOM dated 3 JAN 44. So Factory MB's could have been fitted from that date onwards. Lever Grease Gun and plunger is Plated, end cap is plated. Lever and attaching end is painted Olive Drab. Nozzle is Plated.

Usually Red primer. However, one MB dated Feb '42 have been found parts with black primer:  Bonnet (hood) headlamp brackets, grill, all air deflectors, floor plate, starter heat shield ( Doug. Ingram 2014)

HOOD CATCHES, HINGE  & ATTACHING HARDWARE

Hood Catches - Olive Drab - Original catches had a flat side. Bolts Cad. Plated then painted. Not "F" marked on GPW's

Hood Hinge -Olive Drab - Bolts plain finish, primed and painted. Recessed heads, not "F" marked on GPW's

Chain - Retaining Hood Swivel bolt - painted Olive Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Hood Catches - Olive Drab Original catches had a flat side.

HOOD BOWS, FOOTMAN LOOPS & BRACKETS & ATTACHING HARDWARE

Olive Drab

Chain - Retaining Swivel bolt - painted Olive Drab.

Two Footman Loops - Olive Drab

Olive Drab

Chain - Retaining Swivel bolt - painted Olive Drab.

Two Footman Loops - Olive Drab

HORN

Lengths of the Trumpet as measured.

Schwarze  = 6-1/2" - 165mm

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Sparton =  6-15/16"- 176mm to 7-1/8"- 181mm

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

: Note :

On Sparton Horns

No evidence has yet surfaced to say there were separate MB & GPW horns, the differences appear to be manufacturing  details for various time periods , the ribbed flange V The plain flange, the Round V Oval drainage holes, variations in lengths.

Rib Differences

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Hole Differences.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Sparton R2-14  Outside- Japan Black  Inside- Trumpet Black (Lacquer not Enamel ) Sounding plates are plated http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Attaching "Rams Horn" is also plated as is the mounting bolts which are "F" Marked http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Originally I had these as NOT "F" marked, however, it has recently come to light that as there are only two bolts of this size ( TWO (2) 1/4-28 x 5/8" bolts ) fitted to the jeep and that have been found fitted to a Reykjavik, Iceland find jeep, it would appear that at some stage these bolts were indeed "F" marked. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

It should be noted that as these "F" marked bolts are so rare there's a possibility that these were phased out over the production of the Ford made jeeps.



Round head machine threaded bolts are Plated. Electrical contacts are Plated. Photos of an original, unrestored horn below.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late ’45 may have changed to “Short“ Sparton

- BRACKET -

Olive Drab - Ford has a distinct "V" in the fold, not "F" marked http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Japan Black (Lacquer not Enamel )

NOS SCHWARTZ MARKINGS http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Schwarze SNL G503 Data http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The SNL G503 Parts list (TM-10-1206, Feb 1, 1942) only lists the Sparks-Withington (Sparton) No. B-9427 Horn

Schwarze No. 61400 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

or Sparton R2-14   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

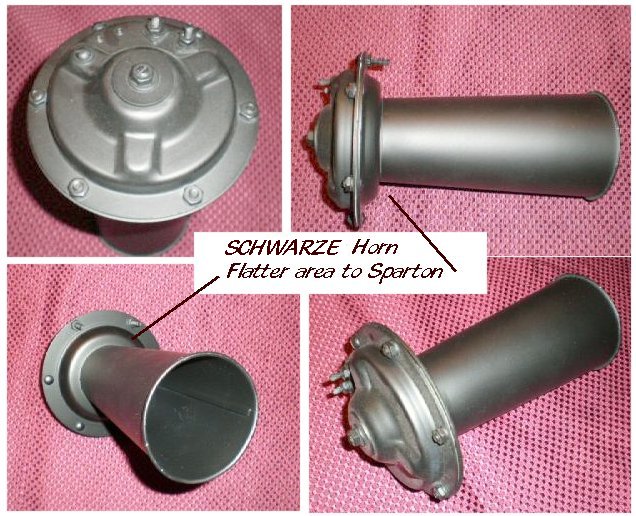

  Rear / Side Differences Sparton v Schwarze http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

- BRACKET -

Olive Drab - MB's are plain folded.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

O/Drab Sparton

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

IGNITION

Switch and key

IGNITION

Wiring

O/Drab Exterior plated interior

Notched recessed toggle if not keyed on GPWs after about 1/43

Ignition switch is keyed with H-700 key. The bezel has 16 serrations and F stamped on the body of the switch.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

This applies to the Ford Jeep produced between January 1942 and January 1943. Depending on which plant was producing Ford jeeps, it appears this was changed to keyless around 1/43



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg





(EARLY) H.A. Douglas Mfg. Co. product with a smooth round bezel (Painted OD) that uses the H700 key

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Willys Master parts list states keyless switch after serial MB 202023

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

 Bezel is Round, not notched





LIGHT SWITCH

Push-Pull Electricals

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg- ROTARY Switch SNL Image

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Rotary Switch Technical Data- Ohm ratings / Open / Closing

EARLY - Push / Pull

LATE - June '1944 to end of production

Rotary switch. Please Note!, some GPW's with dates in July have been found with a single hole for the Push-Pull switch, in which case, they were not fitted with the Rotary Light Switch.

GPW and MB switch is the same with the exception of the plate. GPW plates are Black plastic

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

EARLY - Push / Pull

LATE - June '1944 to end of production

Rotary switch.

GPW and MB switch is the same with the exception of the plate. MB plates are green  painted Aluminium.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

LOCK, SPARE WHEEL

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab, Special Nut is Parkerized Chain is plated and painted Olive Drab.

The Special Nut is Black Oxide  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Uses the H700 Key, (Either Brass or Steel) Locks were supplied by YALE

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab, Special Nut is Parkerized Chain is plated and painted Olive Drab

Uses the H700 Key, ( Either Brass or Steel) Locks were supplied by YALE

LOCK, TOOL BOX Plated, not Painted. Were H700 Keyed,
The Early Fords used an enclosed Bracket

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 to hold the lock, later changed to the simpler Willys style when the Composite Ford bodies were produced.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Plated, not Painted.  Were H700 Keyed, http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

LUBRICATION CHART HOLDER

(Under Hood IF Fitted


LUBE GUIDE

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Early GPW's were not fitted.

Olive Drab, Rubber "Stops" left in natural Black,  Background of the words "LUBRICATION ORDER" is GREEN Semi-Gloss, lettering is in White Drab and is 9/16" High as measured on an Original   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Attached with 10-32 x 7/16" round head machine screws and hex nuts All painted O.D.

Ford was not directed to change their GPW contract to add "War Department Lubrication Guide No. 501 " to a GPW until May 18, 1944. The change of adding the lube guide no. 501 was to take effect as soon a possible but as the data shows this was about a 7 week period of time. .(Tom.W. Mar 04, 2013)

Late Late war GPWs did not have a lube chart holder under the hood only dimples where it would have been mounted. The lube chart used was the new folding type which was stored in the glove box.(Tom.W. 24Jan2012)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab, Rubber "Stops" left in natural Black,  Background of the words "LUBRICATION ORDER" is GREEN Semi-Gloss, lettering is in White Drab.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



LIGHTS, TAIL Buckets, Doors & Bulbs

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

BUCKETS -Olive Drab Inside & Outside. Buckets are "F script" stamped http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Base plate and studs are Cad Plated. Ford Plate studs are "F" marked  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

DOORS are Plain, unmarked i.e.: Not F marked. Early Ford used a rubber seal between the light housing and the body tub. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The unmarked Ford tail lamp doors can be separated from other "unmarked" doors by looking at the "drain" fold on the lower section.

BULBS - Plated Cases, not Painted "F" marked.



Lens - Blackout Stop http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Lens - Blackout Stop Signal http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Drivers side - All Service light.

Lens - Service Stop

Lens - Service Marker



BUCKETS -Olive Drab Inside & Outside.

Corcoran Brown, Guide Brands

Lens Service Stop http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



LUG<Wheel> NUTS AND BOLTS

Painted Olive Drab

Factory Finished in either Plated or Heat treated black

Early Lug Bolts marked KF Left Side Left hand threaded marked "L" or Notched.



Painted Olive Drab

Factory Finished in either Plated or Heat treated black

Early Lug Bolts marked KF Left Side Left hand threaded marked "L" or Notched.



MANIFOLD

Grey  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Appears Black in the above photo, but on closer inspection the paint has been burnt off, possibly testing fire up. End View shows Grey paint on the inside and painted mounting bolts. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

NOS (New Old Stock) inlet manifolds are found as black, however, on the factory fitted item, they are painted grey with the rest of the engine after assembly) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Olive Drab



MIRROR - Assembly & Mounting hardware

KING-BEE - Olive Drab- Lens is Blue Tinted - Sometimes "F" marked

Shaft Collar - Rounded

Adjusting Nut - Square

Acorn Nuts - Squat x 3 Some found as Brass , Mostly found as Steel. Brass ones may either be early, or late reproductions. More Info need on this.

Washers - Fiber x 2

Washers - Spring x 2

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Shaft Collar - Squarish - Slat Grill and early MB Standard jeep

Later - Rounded as found on GPW's

Adjusting Nut - Early - Hex Head, with slot - Later Square

Acorn Nuts - Tall x 3  Steel

Washers - Fiber x 2

Washers - Spring x 2

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

MUFFLER

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Sprayed Olive Drab on frame assembly. Found as Black as NOS.

Steel Manifold Flange



The early exhaust system used a round style muffler. Ended July 1942

Oval muffler was used. July 1942 - Early 1945

Rear exit exhaust fitted (No know month date at this time) 1945

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Sprayed Olive Drab on Frame Assembly

Found as Black as NOS

Cast Manifold Flange

The early exhaust system used a round style muffler and different exhaust hangers until Veh. No. 143507 when the oval muffler was used.

Rear exit exhaust fitted Jan 1945 (approx) at MB 401550

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

OIL CAN & FIREWALL BRACKET

Either Olive Drab or PLAIN  See:- http://www.g503.com/forums/viewtopic.php?t=103612

Acceptable OIL CAN MANUFACTURERS are GEM,  (GEM) MFG.Co.*
GEM-1804 FM-GP-17038 EAGLE, Eagle MFG.Co. (EAG)
EAG-4004-00 FM-GP-17038, NOERA

All Oil Can Brands Photo  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Original NOREA info http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Firewall Bracket - Plated then painted Olive Drab.  Marked either B (Bassick) on the slider section or HCI 1943

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Unmarked brackets have been found as NOS - Unpainted  and Plated

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Either Olive Drab or PLAIN

Acceptable OIL CAN MANUFACTURERS are EAGLE, NOERA

Firewall Bracket - Plated and/or Painted  Black http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg(Mostly Slat Grill jeep factory photos show this) or Olive Drab, marked either B (Bassick) on the slider section or HCI 1943

Also, Unmarked has been found as NOS

Photos and More information required on actual factory finish of the bracket. Email me please.

OIL FILLER CAP, TUBE & TUBE RETAINING BRACKET

Cap - Early (Pre- PCV) Painted Grey

Cap - Later - Plated

Cap -Red Painted only when required by Unit directive. (Not Factory Finish)

STRAIGHT tube/Push On dipstick = GPW 6763A

Funnel type/Push On dipstick = GPW 6763B (after Jan '42)

The non vent tube oil filler pipe continued up till mid Feb. 43 according to Ford GPW motor assembly records

Funnel type/Screw On dipstick/PCV tube-to-CO tube = GPW 6763C (after Feb '43)

Tube - Same as engine Grey . Note that NOS and replacement Oil Filler tubes are found as Olive Drab, this is not the correct colour for a Factory restoration.. The Tube is Not "F" marked, but the dip stick is stamped

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Tube Retaining strap - Same as engine

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Early (Pre- PCV) Painted Olive Drab

MB 114550 END OF EARLY OIL FILLER TUBE & DIPSTICK N°639555

OIL FILLER CAP - Plated then Painted OD on final Paint Touch Up http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Cap -Red Painted only when required by Unit directive. (Not Factory Finish)

STRAIGHT tube/Push On dipstick
Funnel type/Push On dipstick =  (after MB114550 Jan '42)
Funnel type/Screw On dipstick/PCV tube-to-CO tube = (after MB 208437 2/3/43)

Cap: Black

OIL FILTERS

Egg Shell -  Black

Two types of tops for the Purolator STANDARD MILITARY  FILTER both Marked 25791 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Military Junior filter and the Purolator part number 26638 was  not used on MB or GPW jeeps.

Top plate retaining bolt is Cad plated for both PurOlater and Fram filters

*** PurOlater Type, Unprimed under Black with silver  stencil marks of PD-5106 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg not PD-51 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  on top  and INLET in silver   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 "PD-5101" was used for both Dodges and MB's after Ford began to use the Purolator on the GPW. Before Ford began using them they were only marked PD-51...there was no reason to use the "01" or "06". Purolator began using PD-5106 to denote oil filters meant for GPW's since they had a Ford decal. The 5101 denoted the standard filter (two decals). [Michael O'Connell 2014 ]The inverted INLET shown above is a marking mistake

"F" Decals fitted

March / April 1943 on - FRAM or PurOlater Fitted as seen on Richmond built jeeps unpacked from crates in Australia

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

FRAM

Egg Shell Black   Top plate retaining bolt is Cad plated for both PurOlater and Fram filters

"INLET" DECAL

LOWER DECAL Front

LOWER DECAL "OUTLET"

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Black

OIL FILTER BRACKET BANDS

&

OIL FILTER BRACKET Attached to Head

BLACK - As for Oil Filter http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Two brackets attached to the engine block Oil Filter Bracket with Cadmium or Zinc plated Hex Head bolts.

4 x screw, cap, hex-hd, S, cd or zinc plated, 5/16"-24NF-3 x 3/4"

Bracket is painted same as Engine - Grey

Attached with Cad/Zinc plated bolts http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Band Tightening bolts Cad/Zinc plated  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



OIL LINE GROMMET

Early - TBA  Late - Felt

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

(Still checking the parts lists for issue dates)

BLACK - As for Oil Filter http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Two brackets attached to the engine block Oil Filter Bracket with Cadmium or Zinc plated Hex Head bolts.

4 x screw, cap, hex-hd, S, cd or zinc plated, 5/16"-24NF-3 x 3/4"

Bracket is painted same as Engine - Olive Drab

Attached with Parkerized bolts, Cad washer http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Band Tightening bolts Cad/Zinc plated  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

OIL LINE GROMMET

Early - TBA  Late - Felt

Rubber used throughout

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Above is a photo taken in the Japan based re-build factory.

OIL PAN

As for Engine - Grey

Early Oil pans had a riveted "F" marked reinforcing plate around the sump drain hole. The Ford records show this changed at GPW 25855 or GPW25755 The "F" could be covered by solder depending on the worker at the Ford plant or repairs since production.

Standard Oil  pans had an "F" and GPW on the baffle

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

As for Engine - Olive Drab

Early Slat Grill jeeps had riveted drain plug outlets. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

GP oil pan is gloss black while other engine accessories are a semi-gloss black

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

OIL PRESSURE GAUGE - BEZEL

Early - Paint Can Lid - Stewart-Warner  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Later - Round edge - Stewart-Warner  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



MB Oil Pressure Gauge - AUTOLITE http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Bezel is OD



PINTLE HOOK

PAINTED Olive Drab

Large Script "F" Lower jaw

Word "Ford" in script in Lower jaw

Marked 60A http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Earlier Models without the Pintle were issued a "Kit" http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg







PAINTED Olive Drab

Slat Grill Pintle Hook "STEEL" marked http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Holland Hitch Co. Model T-60-A without trailer safety chain eye bolts which were not added until Veh. No 158372.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

1945 Stamped Steel welded and riveted fabrication

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Welded Pintle hook Start according to Farley´s Standardized Wartime Jeep2 Page 139 - Contract W-33-019-1885 April 1945 Veh. No. MB 431301. Nabholtz Ver.2 Has the the fitting as Contract as W-7

Marked "STEEL"

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Manufacturers name is offset compared to the MB Slat Grill Pintle. The Top Jaw has a severe Under-bite to the lower jaw

PAINTED OD

GP Pintle hooks have a different bolt mounting pattern from standard MB/GPW type Pintle hooks

PCV Valve

&

Down Draft Tube

Crankcase Ventilation System

History Wikipedia Link



Down Draft Tube - Gray (Same as Engine) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Changed to PCV approx. Jan - Feb 1943

PCV Valve is Black Oxide http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Down Draft Tube - Olive Drab (Same as Engine)

Per Nabholtz, PCV was first  installed after MB 208437

 PULLEY ( Fan Belt) SHIELD Grey
Same as the Engine Attached with recessed head bolts
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
Olive Drab
Same as the engine

RADIATOR

Olive Drab - GPW and "F" marked at the inside left top corner near the top hose tube. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Found as Black NOS, but Factory finish is Olive Drab***

Willys Radiators On Fords

*** Updated Aug 2010 Ford document show the MB radiator became optional on the GPW in late '43. Most '44 and '45 GPWs have been found with MB radiators . The Colour was still OD,  NOTE BELOW FOR EXCEPTIONS RICHMOND PLANT

Updated 26 Feb 2012- If you have a Late '44 GPW see this RICHMOND PLANT photo http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

At present this only applies to the Richmond Plant, Willys Radiators were fitted and were left Black on delivery. Note also, the top radiator steel tube is Black, the air cross over tube is OD, Air horn to carburettor is OD.

GPW Radiators have an angled shroud, the leading edge of the core is angled on one side. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Above available from Ron Fitzpatrick

Radiator Stay Rod (From the firewall to the tag on the radiator top is Olive Drab) Not Marked.



Black SATIN

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

MB 108452 END EARLY 3-RIB side two rib top RADIATOR MB

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



MB Radiators have a square shaped shroud.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Above available from Ron Fitzpatrick

Radiator Stay Rod (From the firewall to the tag on the radiator top is Olive Drab) Not Marked.

O/Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

RADIATOR CAP

&

Overflow Tank Cap & Surge Tank

(If Fitted)

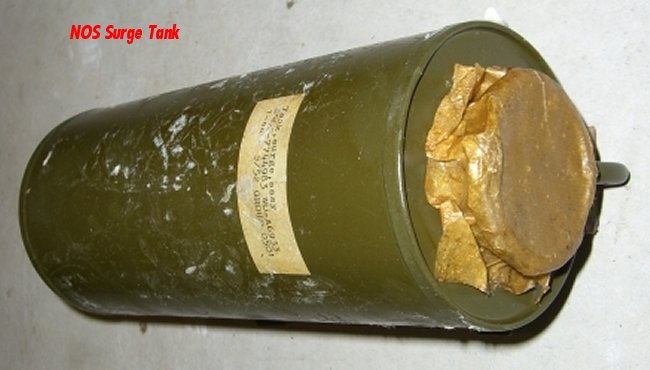

Surge Tank, Shield and Fittings

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


Zinc or Cad. Plated

- Not Painted -

4lb. Small "F" Marked Round - No Lugs except for the A-2 type which had a larger "F" mark..

The Cap comes with a thin fiber washer seal.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Plated Not Painted- A/C Brand 4lb. Round - No Lugs (Photos on right)

Overflow Tank - Plated A/C Brand Smaller than a Radiator Cap, has no pressure release  (Photos on right)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Plated

As used on Mid '30's Civilian Fords

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

RADIATOR HOSE STEEL TUBES (If fitted)

Olive Drab

Hoses are Red Striped , Not GPW marked,
Radiator Clips are Unpainted, Plated

Radiator Hoses: From start of production until approx. Nov. ‘42 GPWs were produced with one-piece rubber radiator hoses.
The upper hose is a spiral-wrapped type with a 1/2” red stripe.
The lower is a molded elbow shaped hose marked in red or white paint. The “F” is the Firestone style.

After Nov. ‘42 both upper and lower hoses included a steel tube and used 4 short lengths of red-stripe hose and a total of 8 hose clamps.http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
The steel tubes were painted gloss black or more commonly olive drab.
An alternate late-type hose did not have the red stripe, but did include the Ford part number and Ford script in *silver paint.*(*Tony Sudds UK)

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Early - Slat Grill - Full Length Black rubber Top hose, no stripes

Lower Hose - Slat Grill - Two part with steel tube, usually painted Black. Conflicting photos also shows Olive Drab

Late - Olive Drab tubes

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

O/Drab

RADIO WIRING JUNCTION BOX

On the inside of the body beside the passenger seat

- Olive Drab -

Ford used Round Head, slotted, Machine Thread screws 1/4" x 3/4" NC with star washers and nuts internally. The outside washer was lead plated steel. If you can't find such a washer, you can "tin" the washer in a thin solder. Actual start date is uncertain at this time, however, on a GPW the radio wiring junction box started in Mid '43 ( Lloyd White says with the use by Ford of the ACM type 1 body)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab -

Willys used a Hex Head bolt. 1/4" x 3/4" NF the outside washer was lead.

Fitted after MB 217543

ORIGINAL BOX PHOTOS

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

                    Radio Installation  N/A
MZ Radio Jeep Interior http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

REAR AXEL HOUSING

Painted Olive Drab



Painted Olive Drab



-REFLECTORS - SIDE & REAR

According to Accounting Dept.- Ford Archives. communications  "Stimsonite reflectors " were a proposed change in the original cost estimate for the second GPW contract. This is not to say Stimsonite reflectors started at the second contract but it would indicate that they were not used on the first GPW contract since the second contract estimate was based on March 23, 42 first contract production. (Supplied By Tom Wolboldt USA. Nov.'08 and Research by Ian Fawbert. Aust.)

All 4 Reflectors - RED with Olive Drab bezel

Housings/Bezels: 1st Contract Fords
DO-RAY 100 TIGER-EY-P
DO-RAY LAMP CO. PAT 2216325
Lenses/Reflectors:
TIGER-EY PLASTIC
NO.100
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

2nd Contract- Not yet fully determined. Information below is yet to be confirmed.

 March 1942 - October 1943
Side & Rear -"F" Script stamped, Round Bezel, Marked GUIDE A-2 No.408C (Top) and MADE IN USA (base)
Lenses/Reflectors:
Red Stimsonite
No. 12 Coarse
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



March/April 1943 - End of Production

Side & Rear - Not "F" marked, Oval Bezel, Marked GUIDE A-2 No. 415A (top) and MADE IN USA (Base)  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  Used red Stimsonite No.12 Some Oval bezels did not have the 415A stamping. - More information required on this.-http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

All 4 Reflectors - RED with Olive Drab bezel

All MB's used Round Reflector Housings.Oval reflectors were not used.

Below is as per Lawrence Nabholtz

November 1942 - Contract W-1 Corcoran - Brown (C-B)  with Tiger Ey

August 1945 - Contract W-7 "Yankee"

Below is "As Found" on some Unrestored Willys MB's

Bezel Marked CORCORAN-BROWN PLASTIC NO 100 Painted Olive Drab

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Lens - Marked GROTELITE No 100

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Need More Information and Photos on Willys Reflectors, if you can help, email me.

REGISTRATION NUMBERS (HOOD NUMBERS)

Radio Supressed Jeeps Hood Markings Approx. change date - ARMY MOTORS Article.

2" High Blue Drab Number were added at the factory throughout the full production of Fords.

On resprays in the field, White Numbers of varying sizes and font styles were applied.

Interesting Registration Number Fact

GPW's were made under a "cost plus" basis. That is whatever the actual cost of producing a 1/4 ton truck was the Government was charged exactly that, plus Ford's profit (about $50.00 per vehicle). This produced a bookkeeping nightmare as every time something was changed or added to the jeep the exact cost of this had to be computed and added to the amount the Government was charged. Of course this worked both ways if something was deleted from the vehicle. In contract W-398-QM-11424 for example, the omitting of the third US registration number on the rear panel lowered the cost of the GPW's by $0.25 each.

This applies to the Ford Jeep produced between February 1942 and September 1945

2" High Blue Drab Numbers and letters  White was used in the last contract and produced after the War ended.

From Fred  Coldwell - Feb 7 2016

The change from lusterless blue drab to lusterless white painted hood registration numbers was scheduled to take place on the Willys factory production line on October 1, 1945, which is after WW II ended. So I believe the Willys factory used blue drab paint for all U.S.A. Registration numbers through August 20, 1945, when MB production for the Army (Ordnance) ended. In 1945 Willys also produced 1310 MB jeeps for the Navy under Ordnance Purchase Order T-14565 but under a different Ordnance contract, 33-019-3339, with registration numbers "Navy to Assign".

The only Willys MB I have seen with a white factory-painted registration number has "U.S.A. / 20769647 S" on its hood side.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 But according to the U.S. Army Ordnance Department's 1 October 1945 publication "Administrative and Tactical Vehicles 1940-1945", which is now available for purchase from the M.V.P.A., the highest MB registration number on a Willys MB bought by the Army was 20768668, which is 979 numbers lower than 20769647. Moreover, 20769647 is pictured in the Willys factory on December 7, 1945 being fitted with an experimental full length metal cab made by Willys. This leads me to believe 20769647 was a MB that was either (i) given that U. S. Army registration number by the Navy, which makes little sense but remains a possibility because it was an ORD jeep rather than a Navy radio jeep, or (ii) was retained privately by Willys for use in testing parts which Willys designed postwar and sought to sell to the Army.

Remember, when the Army cancelled the Willys MB contract on August 20, 1945, it probably purchased all the MB's then on the production line that day but told Willys not to begin building another MB for the Army. I imagine Willys had on hand sufficient parts in stock to build a number of additional Ordnance MB's. Willys might have built a few MB's to keep for postwar testing and settled its contract termination with the Army for all others MB parts then on hand in stock. Some MB parts were used in early CJ-2A Universal jeeps.

Bottom line IMO, if you are restoring your Army MB to WW II "factory condition" paint its hood registration numbers in A-2594 lusterless blue drab paint.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

.

REGULATOR- VOLTAGE

Ford GPW & Willys MB

SAME FINISH

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The ribs on the volt regulators were added to all models in March 44

(Sean Elliott 7/06)

Autolite Codes

 Black, Crackle Finish, Not Wrinkle,- Hardware plated. Pressed in washers underneath are plated, not painted

Very early VRY regulators had a smooth finish.

ID tag: Etched aluminium with red/orange background. (6Volts)

VRY 4023A '42 -43, No Ribs, Cork Gasket.

VRY 4203A  March '44 on Ribs, Cork Gasket.

VRY 4203B Jan '44 on Ribs, Cork Gasket. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgOct1944

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Unknown at this time, with definitive Ford Records if VRY 4203-B were used on GPW models

VRY 4203D Aug '43 on Ribs Cork Gasket.

 VRY4203G Introduced Jan 1945 Ribs Rubber Gasket. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Filter - P.R. Mallory & Co. Inc - Ford Marked  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Black, Crackle Finish, Hardware plated ID tag: Etched aluminium with red/orange background. (6Volts)

MB 112925 FILTER IS ADDED ON THE VOLTAGE REGULATOR

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Tobe Deutschmann Corp.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Sprague



RIFLE HOLDER on Windshield

Olive Drab

UNCONFIRMED :- Nabholtz notes that very late production GPWs were fitted with the canvas cover. Photo of the Louisville Plant Shows the cover fitted, Contract F5. It should be noted that although the photo shows a GPW leaving the line, it's a posed photo as the vehicle already has the USA registration Number 20748944 S . These numbers were allocated after inspection, not on the production line. This information may not be correct.

Canvas pad repair kits are available through odcloth.com. Mounting hardware is available through Ron Fitzpatrick g503.com

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

AAW Vol.3 bottom of page 130 of a late Willys being tested at the Studebaker proving ground at South Bend with a canvas rifle rack cover.

RIMS & HARDWARE

Kelsey Hayes http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Schrader Valves & Caps http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Note ***

GPW wheel lug nuts were Cad plated and MB were black. Actually heated and oil dipped to harden. Same process with combat rim nuts. They are not Parkerized or black oxide finish

(Sean Elliott 7/06)

Warning Tags were painted Olive Drab, a 1/2" Osborn brush was used to highlight the raised lettering using 672099 Lusterless White enamel  paint.
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

All GPWs fitted with (Kelsey Hayes No. 25692).  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgCombat Split Rims - Olive Drab

Tire Mounting Sleeve AKA Valve Stem Protectors Olive Drab  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Not F marked, Marked with Kelsey-Hayes a Date and Rim size  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Nuts used are all right hand, longer than the nuts attaching the rim to the drums  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Jeeps came off the line with the rims painted Olive Drab  first, done at the wheel factory.
The tires were added at the jeep plant, the halves were bolted together, since the bolts were staked into the rim half they got Olive Drab  on the bolt heads only. The rest of the bolt was plated and protected with a cardboard tube. (See photo on the right)
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
Nuts were added on the back side. They were Cad. plated .Then the wheel/tire was mounted onto the jeep.
When the jeep got to the touch up stage at the end of the line where it was no longer pushed along by the hubs then the touch up man sprayed Olive Drab on the hub and over the lug nuts.
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Reproduction Rims are available both USA Made and Philippines Made

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://www.jeepdraw.com/front-sect.htm

Early MB Slat Grill "solid rims" Combat Rims added at Contract W-2 Feb '42 - Olive Drab

(Slat Grill) Kelsey-Hayes No. 24562 4"x16" drop center wheel with a solid disc center http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

MB 120700 END OF SOLID RIMS

After 120700 used the split, bolt-together style combat wheel with bead retainer (Kelsey Hayes No. 25692).

Olive Drab Solid & Combat

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

O/Drab

Solids 4" x 16"

SEAT FRAMES & CUSHION ASSEMBLY

and ATTACHING HARDWARE.

 Olive Drab Canvas

Screws and Washers Black oxide finish

The drivers seat has a smaller hole in the seat bottom, to correspond with the small fill hole 2 inch. All three seats are F marked on the back. The passenger seat is the same throughout production.

The style used until September 1942. The rear seat does not have the bracket for the tire pump and is F marked on the bottom pan as well as the back. .

  MVPA Restoration GPW Judging Standard

The Rear seat hooks on Fords are BLOCK "F" marked and are slight thicker than the similar Willys made hooks, they are held by two studs inserted into the hat channel  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The front seat passenger frame is fitted with four footman loops to attach  Ford Strap, top roll  FM-GPW-1152950.
They are 45 1/2" long from the top of the loop at the buckle end to the U shaped metal tip at the other end. The buckles are black coated brass pressed from flat stock. The buckles do not have an anchor stamp on them. They are a single strap with a buckle on one end and the U shaped metal tip (Type 1) on the other. They are the lighter coloured OD canvas strap.
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The WO part No. is WO-A3141 - These straps hold the canvas top when not in use.



Olive Drab Canvas

Screws and Washers Black oxide finish

Tire pump holder added under rear seat after MB serial number 193040

The front seat passenger frame is fitted with four footman loops to attach WO part No. WO-A3141
They are 45 1/2" long from the top of the loop at the buckle end to the U shaped metal tip at the other end. The buckles are black coated brass pressed from flat stock. The buckles do not have an anchor stamp on them. They are a single strap with a buckle on one end and the U shaped metal tip on the other. They are the lighter coloured OD canvas strap. These straps hold the canvas top when not in use. These straps hold the canvas top when not in use.

Wood seat bases were lightly sprayed flat black on both - upper and lower surfaces. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

4 Footman loops beneath the front passenger seats are OD size is 3-1/8". making them longer than that used on MB's and GPW's

SHEET METAL

 Red Oxide Primer



Red Oxide Primer



SHIPPING PLATE

When fitted to the left of the glove box Aluminium - Black background http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Attached with Cad Plated, Pan Head, self tapping screws

Available through http://www.dataplates4u.com

When fitted to the left of the glove box Aluminium - Black background http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

The Willys varied from the Ford by not having an plain aluminium surrounding the black area.

Attached with Cad Plated, Pan Head, self tapping screws

Available through http://www.dataplates4u.com

SHOCK ABSORBERS
See SNL-G503 Sec. 16
ARMY MOTORS ARTICLE -  SIZE

 Olive Drab
Washers - Mounting Sizes
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
Olive Drab

SKID PLATE

To identify your skid plate visit Chris's site

http://www.opie.com/jeep/skidplate.htm

Olive Drab

One piece skid plate, (GPW 5291-B) external handbrake drum type.  Fords were never fitted with the Internal handbrake drum. Skid plate was Script "F" marked.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab

Early Slat Grill MB skid plate is a single plate, (A-1253 ) later, after the slat grill jeep  a two piece skid plate (A-1253 & A-5415) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg was fitted, which attached to the side rail similar to the Ford style.

Late MB's One piece plate (A-8858) Ref: Nabholtz - Sept 1944 at Serial No. 373337 which had provision for the Internal handbrake drum.

SPARE FUEL CARRIER

AKA Jerry Can Bracket

TB ORD-92 Mounting the 5 gallon spare fuel Carrier . Pdf File

A basic identification is as follows.
(1) Six holes on the underside (two large, four small)

(2) Underside has a stamped, recessed area left and right to accommodate the folded tabs from the sides.

(3) Reinforced fold where the straps meet the bracket. These could be missing as some were just a clip on arrangement.

(3) Part Number "42-B-22590" stamped... MAYBE! Maybe not!

The late war (Ordnance Drawing) part number was D66675. After WW2 the 7,xxx,xxx Ordnance number was used.

 If Fitted - Olive Drab Primed with Red Oxide

2 webbing Straps attached with brass rivets. See TB ORD-92 Pdf File

GPW was FM-GPW 1140330. To my knowledge, none are so marked with a part number or "F" stamped.

To be 100% certain you have a genuine WW2 spare fuel carrier you need to check some numbers, usually stamped 42-B-22590 or D66675 (Late War Drawing Number), [ Have been found on the front face, either left of right side of the front strap slot, Extra stamp on the vertical/sloped side (not as common) ], now having said that, unmarked ones are also correct, provided they follow the correct manufactured folds, tabs and indents and hole locations. Many GPWs have been found as original with non-marked brackets

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg 42-B-22590 and A-4123 JARVIS CUTTING TOOLS INC. Part references still referred to today



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

If Fitted - Olive Drab with Red Oxide primer

2 webbing Straps attached with brass rivets

Willys Part Numbers are A-4130 and later WO-A 4123

As for Ford, there were differences in what Willys fitted from time to time depending on supply and date.

Part A-4123 as made by **ACF-BRILL MOTORS CO. (** ACF=American Car & Foundry)

42-B-22590 and A-4123 also Made By JARVIS CUTTING TOOLS INC.


SPARE PARTS SUPPLIED
See Also Here
The Ford Spare Parts were issued in a heavy card box. These were later transfered to the Glove Box  for use. Going on the 75 piece cotter pin set this kit is for GPW's late in 1944
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
The MZ Radio jeep was supplied with a wood box and contained other items than the usual MB kit.
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
As well as the standard MB kit it also included :- fuel pump and carb repair parts, ignition parts, generator brushes, siphon hose, tire tube, tire patch and tire tube repair kit, headlight, and a trouble light with cord.
The Willys MB kit was supplied in a bag. and contained  the following :-  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
Willys had 13 items and Ford had 12 the difference was the crush washer for the Spark Plug  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
The Cotter Pin Tin dimensions are 2" high x 1 3/4" diameter
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

SPARE WHEEL CARRIER

The overall length of the tyre carrier stud is 1.8500" (46.99mm)
Wheel stud length 1.5160" (38.50mm)

Dimensions Threads Etc. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Olive Drab

Initially a 3 Stud Carrier was used, Changed to a two stud with a "Foot" attached to the rear panel and rear cross member.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



Spare Wheel carrier 3 bolt design.

This applies to the Ford and Willys Jeeps produced between November 1941 and Mid to Late1943

Olive Drab

Initially a 3 Stud Carrier was used, Changed to a two stud with a "Foot" attached to the rear panel and rear cross member.

Spare Wheel carrier 3 bolt design.

3 stud spare tire carrier to 2 stud, after approx MB serial number 260000, End 1943

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


SPARK PLUG PIPE

N/A



N/A

O/Drab

 SPARK PLUG DRAIN SHIELDS

Brown Bakelite caps, 1942

Contracts F-1 & F-2

Ceased being used start of Contract F-3



Brown Bakelite caps, 1941 1942

Changed to Black Rubber Contract W-3 Fitted until end of production



SPARK PLUG WIRES

Black Gloss Finish



Black Gloss Finish



SPARK PLUGS

COMBINED

SNL G503, 1944, in the electrical section, calls for:

Plug, Spark, w/gasket, assembly (14mm) (CP type AN-7) WO-A-538, FM-GPW-12405

However!!!! in section 3, vehicular spare parts, SNL G503, 1944, it calls for:

Plug, spark, w/gasket (Fed. St. No. 17-P-5365). (still same Willys and Ford part #'s-WO-A-538, FM-GPW-12405)

TM10-1349. Jan 42 (GPW Maintenance manual, 1st GPW contract)
Champion QM-2

TM10-1349. May 1943. (GPW maintenance manual)
Champion QM-2

Firestone, F-40   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Champion, QM-2   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

AutoLite AN-7   http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

All Gaps set at 0.030" as per the AC Training Manual.



WILLYS

TM10-1513. Oct 42. (WILLYS maint. covers march 42 contracts). Says:
Autolite QM-2. (Equivalent to AN7)

Champion, AutoLite AN-7

TM-10-1207 (WILLYS maintenance manual)
(WILLYS maintenance manual, slat grill, glove box, picture). Champion, QM-2.

TM10-1513. Oct 42..& TM10-1513. Dec 43. (WILLYS maintenance manual)
Auto-Lite AN-7  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Auto-Lite QM-2 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



SPLASH SHIELD - AIR CLEANER aka

GENERATOR SHIELD

 Olive Drab

Ford Splash shields were marked both with a GPW and a script "F" http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab



SPRINGS & SHACKLES

Spring Numbers

1941 -1944 8F / 9Rear

Late 1944 - End 10F / 11Rear

XLS File  (Mather specs from 1941-1945) Lengths of each spring leaf MB & GPW - All sets.

By Chuck Lutz.





Painted OD with the exception of the grease nipple....this is left unpainted as it's plated.. Painting includes the metal seal cups inboard.
Motor Pool requirements are the nipple is painted red, but not for a factory finish.

On GPW Spring retaining brackets the 1/4" Bolts nuts are to the PASS side on the front. And to the DRIVERS side on the rear - Painted OD


Factory installation of the torque reaction spring on the GPW started in mid July, '42.

Painted Olive Drab, Flat Strap, folded, with tab.

Torque Reaction Spring added to MB's at MB 146774

Pdf Technical Service Bulletin G-2 Torque Reaction Spring Sep '42

STARTER <STARTING> MOTOR

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Satin Black   BLUE DATA PLATE http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg      Should read "STARTING" not "STARTER"

NOS Carton http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgCarton Basehttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg NOS Starter photos http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Support to Engine - BLACK

Attaching Hardware - Power Cable to Starting Motor http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgAttaching Starting Motor to Bell housing Bolt/Lock Washer is Cad Plated

The band hardware is black painted, the pinion housing assembly (with the GPW Part Number) screws and washers are plated.

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Satin Black

Support to Engine - BLACK

Attaching Hardware is Cad Plated



STARTER <STARTING> SWITCH

Plated - Angular Back Plate - GPW -

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Plated - Angular Back Plate - WILLYS -



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

STEERING BOX

Olive Drab http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg F & GPW Marked

Olive Drab  - Ross Brand

Slat and MB Difference can be found on this website

http://www.opie.com/jeep/steeringgear.htm

STEERING WHEEL

Go to

http://thomas.tcjnet.com/sheller.htm

for in depth information Contact Thomas Jacobson and add your available  information





Black Sheller initially fitted - See W-O Info on the right.
March 1942 - Change to green Tenite with 5/16 plugs on back
Late 1942

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late 3 spoke steel green O/Drab After Mid February 43 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Some 3 spoke wheels have been found with a Block "F" on the underside of the central hub. These are very rare.

The STEERING WHEEL POSITION- one spoke at the 6 o'clock the other two are at the 10 o'clock and the 2 o'clock positions.





Early MBs (Predominately Slat Grill MB's) had a solid black plastic Sheller steering wheel (WO A-6858) as shown in both TM-10-1186 and ORD 9 SNL G503 parts books

General consensus is:-

1941 - Black Thermoset, no holes on back [1st Contract MB (Slat Grill) Part No. A-535 BLACK Sheller]


Early 1942 - Possible use of black Tenite wheel with 5/16 plugs on back
March 1942 - Change to green OD Tenite with 5/16 plugs on back
August 1942 - Change Serial # 170307
to green OD Tenite with 1/8 in holes on back
January 1943 - Change Serial #  202023
to green metal spoke wheel



STEERING SHAFT TUBE

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Tube Olive Drab- No Steering tube clip after Contract F-1

Tube Olive Drab

Steering Tube Clip (Willys Only) Parkerized Black http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Steering Gear Assembly -Olive Drab

TEMPERATURE GAUGE BEZEL

Be aware the bulb is filled with diethyl ether, Diethyl ether is extremely flammable.

Soyez conscient de l'ampoule est remplie avec de l'éther diéthylique, l'éther de diéthyle est extrêmement inflammable

Early - Paint Can Lid - Stewart-Warner

Later - Round edge - Stewart-Warner.

SW Temp has a capillary tube For Stewart-Warner is 24" long for the jeep and up to 50" for other vehicle



-Need more Info-

Autolite Capillary tube is 23" long



TIE RODS (Steering Arms)

TM 9 1803B image http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Ford

Olive Drab Marked Ford

Felt Seal & Cup Washer http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

To enlarge the holes in the felt, use a s/driver or pointy nosed pliers and rotate until the felt seal is a firm fit to the tie rod shaft.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Marked TP

Spring & Cup Washer http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



TOOLBOX SEALS

 Early Rubber, Later Felt Not Painted .Attached with contact adhesive



Early Rubber, Later Felt Not Painted

MB 118599 END OF DOUBLE TOOLBOX HINGES



TORQUE REACTION SPRING & LOCK

ARMY MOTORS - REASON FOR THE TRS

Page 1

Page 2

Page 3

Painted Olive Drab

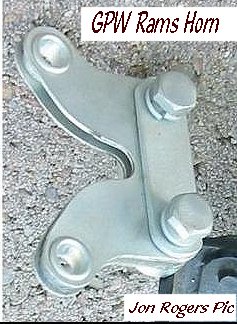

The torque reaction spring was incorporated in production with contract W-398-QM-11424 (W-374-ORD-2742).  First GPW fitted with the torque reaction spring was on July 16th, 1942

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Painted Olive Drab

Introduced at MB 146774.

TRAILER SOCKET COVER AND HOUSING -When Fitted -

Cover - Plated then Painted Olive Drab

Plate - Retaining Seal - Primed Red Zinc Chromate - Painted Olive Drab

Seal - Left Natural Black rubber

Bolts, Nuts, Washers - Plated then Painted (Photos to the right)



Housing - Plated - Unpainted except for the outside face

Connections - Unpainted

Bolts NOT "F" marked on Fords.

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Cover - Plated then Painted Olive Drab.

COVER ADDED AT MB 200679 DECEMBER 1942.

Plate - Retaining Seal - Primed Red Zinc Chromate - Painted Olive Drab

Seal - Left Natural Black rubber

Bolts, Nuts, Washers - Plated then Painted



Housing - Plated - Unpainted except for the outside face

Connections - Unpainted (Photos to the right)

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

TRANSFER CASE HOUSING

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Primed with Olive Drab then Painted Olive Drab(Tom.W 8 March 2012)

Security wiring (photos) The photo on the right shows the safety wire lacing on the bolts holding the transfer case shift lever cap to the transfer case. The wire should pull in a direction to tighten a bolt. If any one bolt tries to loosen the wire lacing will tighten and hold it in position. Use stainless steel safety wire (shown) or aviation mechanics
safety wire #MS9226-06 or bailing wire as supplied in the Spare Parts
kit (Tony Norton)

GEAR, driven, speedometer WO-A1512/GPW-17271  has the following on the shank of the gear….

  SW 448033 stamped on it and has FOURTEEN TEETH that turn on the DRIVE GEAR. This is for standard 6.00 x 16.00 NDT

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg





http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg



http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Painted Olive Drab

Security Wiring (Photos on Left) soft iron wire of 16 gage or .0625 (Willys A964 or Spicer LW-1 Low Carbon steel black annealed) was originally used along with a Willys A9331 listed in the 49 ORD 9. Brass in .040" was used often in the field. Both of these were replaced with the modern stainless steel wires in .020, .032 and .041" etc.

When using lock wire the industry standard requires the wire be of sufficient size to fill 3/4 of the hole. Bolts like Tony's illustration (left) with two wire holes were required to have wire in both holes forming an "X" in each bolt head.

This is all subjective, and I have never seen any factory original wire installations. There are several different acceptable wiring methods for every installation so there is no real gospel way to do it. Unless of course some 90 year old ex-Willys assembly line employee offers up a little personal testimony! (
Wes K)

O/Drab

TRANSFER CASE KNOBS

Round Black plastic



Round Black plastic

Round Black plastic

  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

TRANSMISSION HOUSING

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

Grey

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Transmission style change from right fill to left - Oct. 42

Summer of 42 GPWs engine , bell housing and transmission were painted gray but not the standard light gray, The summer 42 color seems to have been a more blue gray and may have been related to a Lincoln color TomW-2014


Closed vent system - Feb. 43

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Some late GPW ( Early -Mid '44 onwards) were possibly fitted with Warner Gear and  possibly Frank's Bros.T84 transmissions, not "F" marked but did have a GPW Part Number in the casting. No actual dates or serial numbers are available at this time. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

See G503/JeepDraw Ford Marked Parts List

Above Linked List Needs More Information And to be Confirmed.



Olive Drab

TYPES USED

1) Warner, Right Side Fill http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg


2) Warner, Left side fill, still has bosses on right http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

3)  Warner, Left side fill

4) Frank Bros. Foundry, Left side fill, still has bosses

All above to be confirmed

"H" gearboxes started to be used in November 1944

Grey http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

TYRES / TIRES

6.00-16 NDT

2nd Contract GPW's and later- FIRESTONE . BF Goodrich, Silvertown tires are seen in period photos on new GPWs. Most of these GPWs are from 1944 with some also seen in '45 photos -Tom.W 2014)The tire mold has been created new using both original WW2 tires samples and the original Firestone tire drawings.
Inside/Outside View of the New Reproduction  Firestone http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Firestone NAME Original http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Reproductionhttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Firestone "6.00 - 16" Original http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Reproduction http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Firestone "S-3" Mark Original http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Reproduction http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Firestone "Gum" Mark Original http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Reproduction http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Firestone "MILITARY" Original http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg Reproduction http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Firestone "Tread profile" original http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg The reproduction image will appear shortly, however, Tom said the tread is the same as shown in the original.

This tire would be factory correct for GPWs made on second contracts and later. There is still some fine tuning to be done to make these reproduction tyres more accurate. Contact TOM WOLBOLDT for more details or to order.

So far we know Willys used ONLY the Goodyear 6.00-16 NDT for factory MB production. ( Joe Friday - G503.com)
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpghttp://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
It should be noted that Markings may very depending on which Plant produced the tyre.

WATER PUMP

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgTM-10-1348 Exploded View

As for Engine - Grey

Early GPW water pumps were fitted with "F" marked Bolts on information available at this time. Later Water Pump mounting Bolts have recessed heads similar to the bolt heads of the oil sump

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late - post mid 1944 (approximately)  -Attached to the block with 2 x Short recessed head, NOT "F" marked bolts. Longer bolt may or may not be "F" marked

 http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

As for Engine - Olive Drab

Early Slat Grill were fitted with Cast Pulleys

http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg
http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Later  MB's were fitted with the pressed pulley. Painted Olive Drab .                                                                           NOS were either black or Olive Drab. The pulley as NOS was either black or bare metal., same as Ford NOS. http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Gray

WINDSHIELD ,

Glass, Latches, Hood Studs, W/S Rifle Mounts

Frame (Inner & Outer) Olive Drab

Rubber - Unpainted Natural Rubber

Windshield Glass is 22 .7/8" x 12 .3/8" x 1/4" thick laminated.

See Windshield Glass Installation

( Measure your frame if you have a Reproduction windshield)

Early cast bronze latches (painted Olive Drab - Not left Natural bronze/brass colour) were replaced with stamped steel (Olive Drab) sometime in Mid 1942

Rifle bracket (Olive Drab) was included the week of September 5th 1943 at the Louisville plant, September 19th 1943 at Dallas and September 26th 1943 at Richmond Cal.

- STUDS -

Early - Push Type  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late - Capstan Type

First 3,545 jeeps had a shorter windshield frame.

MB 103545 END LOW WINDSHIELDS

Frame (Inner & Outer) Olive Drab

Rubber - Unpainted Natural Rubber

Early cast bronze latches (painted Olive Drab - Not left Natural bronze/brass colour) were replaced with stamped steel (Olive Drab) sometime in Summer-Fall 1942

A (Olive Drab) Rifle holder on windshield frame added in production after MB serial number 261578, Sept. 1943

- STUDS -

Early - Push Type  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late - Capstan Type

At MB Serial No.164554
"Changed to std. top-windshield fasteners.

WIPERS-WINDSHIELD

GPWs early 1944 used a tandem wiper assembly. Vacuum wipers were introduced approx. May ‘45, some time before composite body number 223318, as indicated by the addition of a hole in the cowl for the vacuum hose.  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Olive Drab - Rubber Inserts -



Early - Single Arms  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Mid - Tandem Arms http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

Late - Vacuum Assisted -Vacuum wipers were introduced approx. May ‘45  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

GPW 269248 Body# 230238 DOD. May 9 1945 is the earliest known GPW with factory dual wiper motors Manufactured at the Dallas, Texas plant, Owned byEliecer Mestre . Confirmed By Tom W.

Olive Drab - Rubber Inserts -



Early - Single Arms

Mid - Tandem Arms

Late - Vacuum Assisted



Canadian Contract from contract CDLV-242 & Contract USMC and Navy jeeps: Owens Dyneto 6v Electric (One Fitted, Drivers Side) http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpgPainted Forrest Green.  NOS OWENS-DYNETO Black  http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg http://jeepdraw.com/images/jeepdraw/PART_COLOURS/PART_C1.jpg

More Information HERE

WIRE HARNESS

Unpainted Woven Cotton

Harnesses Available through Ron Fitzpatrick Jeep Parts or

Vintage Wiring of Maine



Unpainted Woven Cotton



Some Differences between Slat Grill jeeps and Standard Willys MB jeeps.

With acknowledgments to Ron Fitzpatrick g503.com for all the web space, and to Members of G503.com

Alasdair Brass, Claude Pons, Sean Elliott, Jacco van Snippenberg, Tom Wolboldt, David Aro, Chuck Lutz and Members of the JeepFabriken/G503 Technical Board for the invaluable information.

Addition information supplied by Bill Mullen - Australia, Luca Grossi (Italy), The Late Marc Open (UK)(RIP), The Late Bill Eldred (RIP) Ken Clay (UK) Lew Ladwig (U.S.A.) May 2006, Mark Tombleson May2006, Mike-Ontario 2007, Derek Eddlestone 2008, WesK 2008. Ian Fawbert - Australia '08, Maurizio - Italy '08  Larry Smith, Michael Valencic, Tony Norton, John W. Rymark (GP Details), Ed Menees - USA -,  Lloyd White - USA, Roger Robberechts - Belgium,  Felix Wüstenfeld - Germany, Joel Gopan USA, Carsten Mühring - Denmark, Pat Walker-USA, Don Kurjata-USA, Brandon - Arizona U.S.A. Hinrik Steinsson-Iceland  - Uwe Schmitz - Germany, Sven Kunkler - Germany - Rory Grenier USA. - Brian Wolf - USA. - Michael Browne - Australia - Trevor Proudler - UK Rodrigo Navarro - Santa Cruz de Tenerife, Canary Islands.

  COLOUR & FINISH OF PARTS - 1/4 TON TRAILER

Steve Malikoff's Originally Compiled "All American Wonder" Index for Volumes 1 & 2

All-American Wonder Volume 1 Index  [pages 9-141]
All-American Wonder Volume 2 Index  [pages 153-285]

EXTERNAL LINKS
J Kilborne's WILLYS List of Manufacturers http://willysbynumbers.info/WMBHome.htm

A Little History on Willys- Ford Composite Tubs and Bantam Trailers

On March 10, 1941, Auburn-Central was awarded a contract to produce 1,600 Jeep bodies for Willys Overland Motors, and by the end of April, Auburn-Central built Jeep body tubs were used in Willys’ Toledo, Ohio assembly plant. Auburn-Central’s president, Harry Woodhead, was replaced by Gaunders P. Jones on June 23, 1941 and the firm continued its preparations to gear up for wartime production.

On August, 4, 1941, Willys-Overland ordered another 16,000 Jeep bodies from Auburn-Central, which was followed up in November by another order for 11,000 units. Auburn-Central’s board of directors made a patriotic gesture on March 30, 1942 when they renamed the firm the American-Central Manufacturing Co. Production of all consumer-destined steel products was halted and the firm devoted itself to military products.

For the remainder of hostilities, American Central manufactured Jeep bodies, ¼ ton Bantam trailers, and wing assemblies, bomb bay doors, gun turret decks, collector rings, and carburettor air ducts for the Consolidated-Vultee B-24 Liberator Bomber, a product of the Consolidated Vultee Aircraft Corporation, commonly known as Convair, which resulted from a 1943 merger between Vultee and Consolidated Aircraft. Over 18,000 B-24 Liberators were built during the war, making it the most popular bomber of World War II.

From the fall of 1943, when they started supplying Jeep tubs to Ford, through 1948, Central Manufacturing was the sole producer of Jeep bodies. A composite Jeep tub that combined the best features of the Ford and Willys-Overland tubs began production in January of 1944.

As the 325,000th Jeep body was mounted to a waiting Willys chassis, the employees of American Central were awarded with the coveted Army-Navy “E” Award in a special ceremony that took place on July 22, 1944. The plant’s other accomplishments included the completion of 200,000 Bantam ¼-ton trailer bodies and the countless wing sub-assemblies that had been produced for the B-24 Liberator and Vultee A-31 Vengeance.

In a sign of good faith, Willys-Overland ordered 25,000 post-war Jeep bodies from Central on August 23, 1944.

The employees of American-Central received their second Army-Navy “E” award on January 16, 1945. The E-award was the Army-Navy Award for Excellence in War Production and was normally awarded when a firm completed a large order for the US War effort or filled an order in a short period of time.

At the ceremony, the employees would be given an enamelled pin mounted on a card certifying their contribution to the war effort with a message from the president.  The employer would be presented with an “E’ flag and banner and outstanding employees would be presented with a special certificate.



Home   G503
